Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                56 Meter used boom pumps, Concrete Mixing used boom pumps, Used concrete pump truck


Max. Theoretical Output:	80m3/h	S Valve Structure:	Double Cylinder And Double Acting
Max. Theoretical Concrete Output Pressure:	18MPa	Model:	HBT80C-1818D
Power Type:	Diesel	Max. Aggregate Size:	40mm
Hydraulic System Type:	Open Loop	Max. Theoretical Horizontal Conveying Distance:	800m
Main Oil Pump:	Rexroth	Max. Theoretical Vertical Conveying Distance:	200m
Feeding Height:	1400mm	Overall Weight:	6500kg
Hopper Capacity:	0.8m3

Max. Theoretical Output:	80m3/h
S Valve Structure:	Double Cylinder And Double Acting
Max. Theoretical Concrete Output Pressure:	18MPa
Model:	HBT80C-1818D
Power Type:	Diesel
Max. Aggregate Size:	40mm
Hydraulic System Type:	Open Loop
Max. Theoretical Horizontal Conveying Distance:	800m
Main Oil Pump:	Rexroth
Max. Theoretical Vertical Conveying Distance:	200m
Feeding Height:	1400mm
Overall Weight:	6500kg
Hopper Capacity:	0.8m3

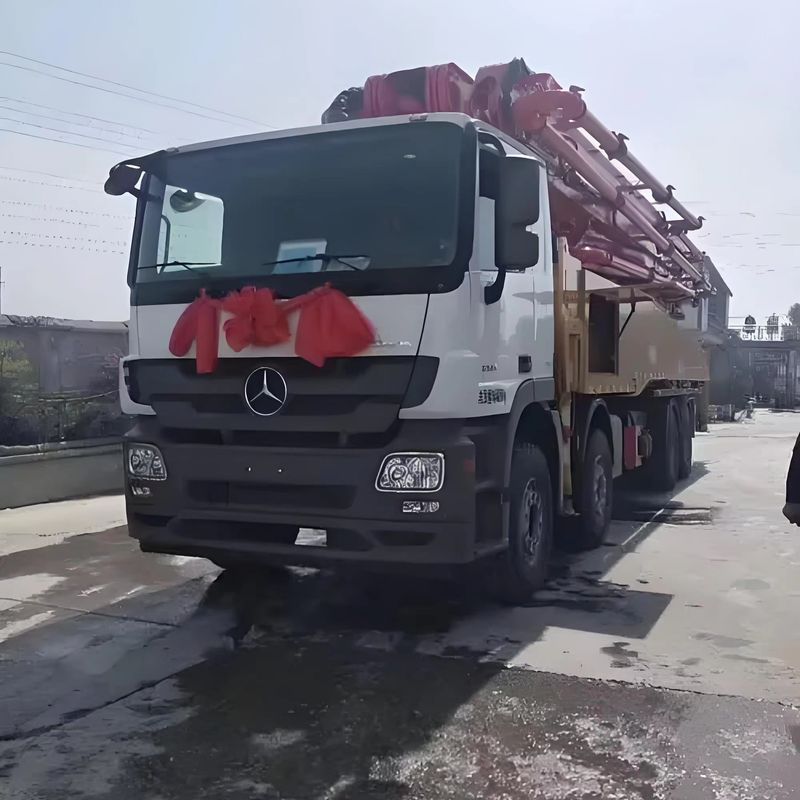

Sany 56 Meter Used Boom Pumps Truck Mounted For Concrete Mixing Pouring

Product Specifications

Attribute	Value
Max. Theoretical Output	80m³/h
S Valve Structure	Double cylinder and double acting
Max. Theoretical Concrete Output Pressure	18MPa
Model	HBT80C-1818D
Power Type	Diesel
Max. Aggregate Size	40mm
Hydraulic System Type	Open loop
Max. Theoretical Horizontal Conveying Distance	800m
Main Oil Pump	Rexroth
Max. Theoretical Vertical Conveying Distance	200m
Feeding Height	1400mm
Overall Weight	6500kg
Hopper Capacity	0.8m³

Product Description

Sany 56M truck-mounted concrete pump (model SYM5333THB) offers efficient fuel consumption and reliable performance for concrete placement projects.

Key Advantages

High Efficiency: Truck-mounted design with high pumping capacity enables rapid, continuous concrete placement, reducing project timelines.
Precise Placement: Versatile boom configuration and control system allow accurate concrete placement in challenging spaces, minimizing waste.
Versatility: Handles various concrete mixes including low slump, high slump, and self-compacting concrete for diverse applications.
Safety & Reliability: Built with high-quality components and advanced safety features for dependable operation.

Truck-mounted Concrete Pump Specifications

Vertical Reach	Output	Pressure	Models
24-36m	100 - 150m³/h	6 - 6.6MPa	SYG5210THB 25C-8(SZ-EU) / SYG5210THB 25C-8(SZ-EU) / SYM5180THBES 30C-8 / SYG5210THB 30V8(SZ-AUS) / SYG5180THB 300C-8(SZ-IN) / SYG5181THB 30C-8(SZ-IDN)
37m	48 - 160m³/h	6 - 13MPa	SYM5230THB 370C-10 / SYG5231THBCS 370C-10 / SYG5231THBCS 370C-10(R) / SYG5232THBES 370C-10(R) / SYG5260THB 370C-10 / SYG5261THBES 370C-10 / ...
38-48m	120 - 200m³/h	7 - 12MPa	SYG5270THB 380C-10(SZ-AM) / SYG5280THB 38(SZ-AUS) / SYG5280THB 380C-10(SZ-IS) / SYG5260THB 390C-10 / SYG5310THBES 430C-10 / SYG5370THB 430C-10(SZ-IS) /...
49-55m	120 - 200m³/h	7 - 12MPa	SYG5340THB 490C-10 / SYG5341THB 490C-10 / SYG5341THB 490C-10(R) / SYG5342THB 490C-10(R) / SYG5350THBCB 490C-10 / SYG5370THBES 490C-10 / SYG5371THBCB 490C-10 / ...
56-60m	120 - 200m³/h	7 - 12MPa	SYG5441THBCB 560C-10 / SYG5443THBCS 560C-10 / SYG5443THBCS 560C-10(R) / SYG5445THBES 560C-10(R) / SYG5445THBES 560C-10 / SYG5450THB 56(SZ-EU) / ...
over 60m	120 - 200m³/h	8.3 - 12MPa	SYM5502THB 620C-10A / SYG5570THB 62(SZ-EU) / SYM5525THB 650C-10 / SYG5590THB 67(SZ-EU) / SYM5590THB 680C-10(SZ-AM)
