58m Putzmeister Used Equipment Concrete Boom Pump Trucks Machinery

Product Details

Place of Origin: Hunan

Brand Name: Sany

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD40000-70000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                putzmeister used equipment Concrete Pump, putzmeister used equipment boom Pump, 58m used concrete boom pump


Max. Theoretical Horizontal Conveying Distance:	600m	Max. Aggregate Diameter:	30mm
Main Oil Pump:	Rexroth	Max. Theoretical Vertical Conveying Distance:	150m
Max. Theoretical Output:	60m3/h	Hopper Capacity:	350L
Warranty:	No Warranty	Power Type:	Diesel
Overall Dimension:	500020002000mm	Feeding Height:	1100mm
Weight:	4000kg	Hydraulic System Pressure:	32MPa

Max. Theoretical Horizontal Conveying Distance:	600m
Max. Aggregate Diameter:	30mm
Main Oil Pump:	Rexroth
Max. Theoretical Vertical Conveying Distance:	150m
Max. Theoretical Output:	60m3/h
Hopper Capacity:	350L
Warranty:	No Warranty
Power Type:	Diesel
Overall Dimension:	500020002000mm
Feeding Height:	1100mm
Weight:	4000kg
Hydraulic System Pressure:	32MPa

58m Putzmeister Used Equipment Concrete Boom Pump Trucks Machinery

Product Specifications

Attribute	Value
Max. Theoretical Horizontal Conveying Distance	600m
Max. Aggregate Diameter	30mm
Main Oil Pump	Rexroth
Max. Theoretical Vertical Conveying Distance	150m
Max. Theoretical Output	60m³/h
Hopper Capacity	350L
Warranty	No Warranty
Power Type	Diesel
Overall Dimension	5000×2000×2000mm
Feeding Height	1100mm
Weight	4000kg
Hydraulic System Pressure	32MPa

Product Description

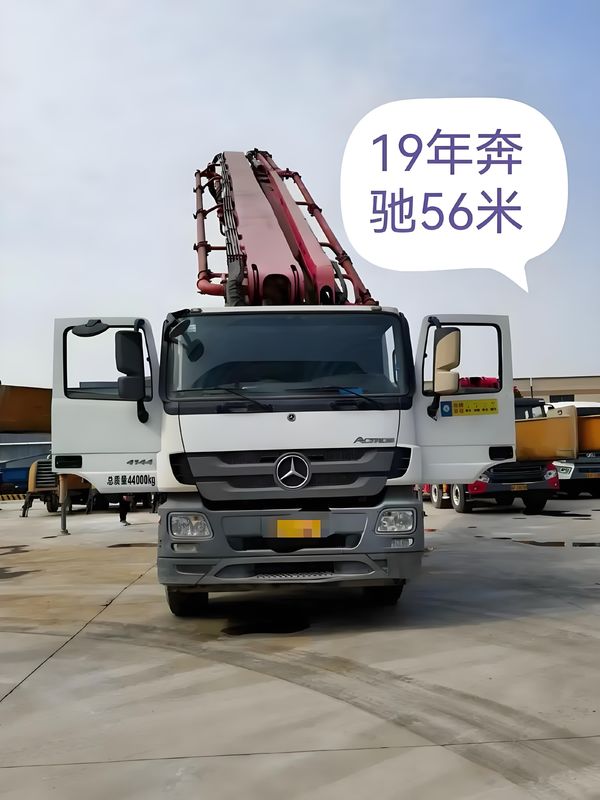

This SANY 56M concrete pump truck offers excellent value as used equipment for concrete placement in construction projects. Manufactured by SANY Group, a global leader in construction machinery, this model combines advanced technology with robust construction for demanding job sites.

Key Features

360° Slewing Range: The boom rotates fully for precise concrete placement without truck repositioning, enhancing efficiency.
Advanced Control System: Intuitive interface allows precise control of boom movements and pumping parameters with real-time monitoring.
Enhanced Stability: Robust outriggers provide excellent stability on uneven terrain, with safety features including anti-vibration technology and hydraulic overload protection.

Truck-mounted Concrete Pump Specifications

Vertical Reach	Output	Pressure	Models
24-36m	100 - 150m³/h	6 - 6.6MPa	SYG5210THB 25C-8(SZ-EU) / SYG5210THB 25C-8(SZ-EU) / SYM5180THBES 30C-8 / SYG5210THB 30V8(SZ-AUS) / SYG5180THB 300C-8(SZ-IN) / SYG5181THB 30C-8(SZ-IDN)
37m	48 - 160m³/h	6 - 13MPa	SYM5230THB 370C-10 / SYG5231THBCS 370C-10 / SYG5231THBCS 370C-10(R) / SYG5232THBES 370C-10(R) / SYG5260THB 370C-10 / SYG5261THBES 370C-10 / ...
38-48m	120 - 200m³/h	7 - 12MPa	SYG5270THB 380C-10(SZ-AM) / SYG5280THB 38(SZ-AUS) / SYG5280THB 380C-10(SZ-IS) / SYG5260THB 390C-10 / SYG5310THBES 430C-10 / SYG5370THB 430C-10(SZ-IS) /...
49-55m	120 - 200m³/h	7 - 12MPa	SYG5340THB 490C-10 / SYG5341THB 490C-10 / SYG5341THB 490C-10(R) / SYG5342THB 490C-10(R) / SYG5350THBCB 490C-10 / SYG5370THBES 490C-10 / SYG5371THBCB 490C-10 / ...
56-60m	120 - 200m³/h	7 - 12MPa	SYG5441THBCB 560C-10 / SYG5443THBCS 560C-10 / SYG5443THBCS 560C-10(R) / SYG5445THBES 560C-10(R) / SYG5445THBES 560C-10 / SYG5450THB 56(SZ-EU) / ...
Over 60m	120 - 200m³/h	8.3 - 12MPa	SYM5502THB 620C-10A / SYG5570THB 62(SZ-EU) / SYM5525THB 650C-10 / SYG5590THB 67(SZ-EU) / SYM5590THB 680C-10(SZ-AM)
