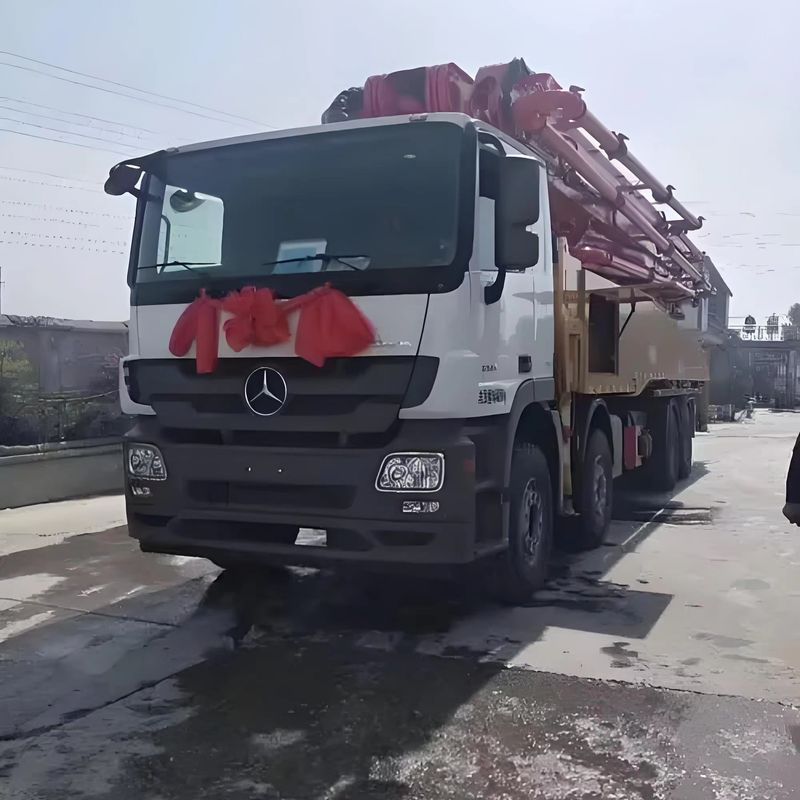

56m Benz Sany rotating Second Hand Concrete Pump Pompa Ready Mix

Product Details

Place of Origin: Hunan

Brand Name: Sany

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD40000-70000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Benz Sany Second Hand Concrete Pump, rotating Second Hand Concrete Pump, Second Hand pompa ready mix


Power Type:	Diesel	S Valve Structure:	Double Cylinder
Overall Dimension:	6000mm2200mm2300mm	Total Weight:	6500kg
Max. Theoretical Output:	90m3/h	Max. Pressure Of Hydraulic System:	32MPa
Max. Aggregate Diameter:	30mm	Max. Theoretical Vertical Conveying Distance:	200m
Hopper Capacity:	350L	Hydraulic Oil Tank Capacity:	350L
Hydraulic System Type:	Open Loop	Max. Theoretical Horizontal Conveying Distance:	800m

Power Type:	Diesel
S Valve Structure:	Double Cylinder
Overall Dimension:	6000mm2200mm2300mm
Total Weight:	6500kg
Max. Theoretical Output:	90m3/h
Max. Pressure Of Hydraulic System:	32MPa
Max. Aggregate Diameter:	30mm
Max. Theoretical Vertical Conveying Distance:	200m
Hopper Capacity:	350L
Hydraulic Oil Tank Capacity:	350L
Hydraulic System Type:	Open Loop
Max. Theoretical Horizontal Conveying Distance:	800m

56m Benz Sany rotating Second Hand Concrete Pump Pompa Ready Mix

56m Benz Sany Rotating Second Hand Concrete Pump Pompa Ready Mix

Product Specifications

Attribute	Value
Power Type	Diesel
S Valve Structure	Double cylinder
Overall Dimension	6000mm2200mm2300mm
Total Weight	6500kg
Max. Theoretical Output	90m³/h
Max. Pressure Of Hydraulic System	32MPa
Max. Aggregate Diameter	30mm
Max. Theoretical Vertical Conveying Distance	200m
Hopper Capacity	350L
Hydraulic Oil Tank Capacity	350L
Hydraulic System Type	Open loop
Max. Theoretical Horizontal Conveying Distance	800m

Key Features

Boom Configuration: 5-section Z-shaped design provides flexibility for navigating obstacles and reaching complex areas on construction sites.
Slewing Range: 360-degree rotation enables precise concrete placement without truck repositioning, enhancing efficiency.
Control System: Advanced system with intuitive interface for precise boom movement control and real-time operation monitoring.

Truck-mounted Concrete Pump Specifications

Vertical Reach	Output	Pressure	Models
24-36m	100 - 150m³/h	6 - 6.6MPa	SYG5210THB 25C-8(SZ-EU) / SYG5210THB 25C-8(SZ-EU) / SYM5180THBES 30C-8 / SYG5210THB 30V8(SZ-AUS) / SYG5180THB 300C-8(SZ-IN) / SYG5181THB 30C-8(SZ-IDN)
37m	48 - 160m³/h	6 - 13MPa	SYM5230THB 370C-10 / SYG5231THBCS 370C-10 / SYG5231THBCS 370C-10(R) / SYG5232THBES 370C-10(R) / SYG5260THB 370C-10 / SYG5261THBES 370C-10 / ...
38-48m	120 - 200m³/h	7 - 12MPa	SYG5270THB 380C-10(SZ-AM) / SYG5280THB 38(SZ-AUS) / SYG5280THB 380C-10(SZ-IS) / SYG5260THB 390C-10 / SYG5310THBES 430C-10 / SYG5370THB 430C-10(SZ-IS) /...
49-55m	120 - 200m³/h	7 - 12MPa	SYG5340THB 490C-10 / SYG5341THB 490C-10 / SYG5341THB 490C-10(R) / SYG5342THB 490C-10(R) / SYG5350THBCB 490C-10 / SYG5370THBES 490C-10 / SYG5371THBCB 490C-10 / ...
56-60m	120 - 200m³/h	7 - 12MPa	SYG5441THBCB 560C-10 / SYG5443THBCS 560C-10 / SYG5443THBCS 560C-10(R) / SYG5445THBES 560C-10(R) / SYG5445THBES 560C-10 / SYG5450THB 56(SZ-EU) / ...
over 60m	120 - 200m³/h	8.3 - 12MPa	SYM5502THB 620C-10A / SYG5570THB 62(SZ-EU) / SYM5525THB 650C-10 / SYG5590THB 67(SZ-EU) / SYM5590THB 680C-10(SZ-AM)

The SANY 56m concrete pump truck offers advanced technology, high pumping capacity, and precise control for efficient concrete placement. Its versatility, stability, and safety features make it ideal for construction projects of various scales and complexities.
