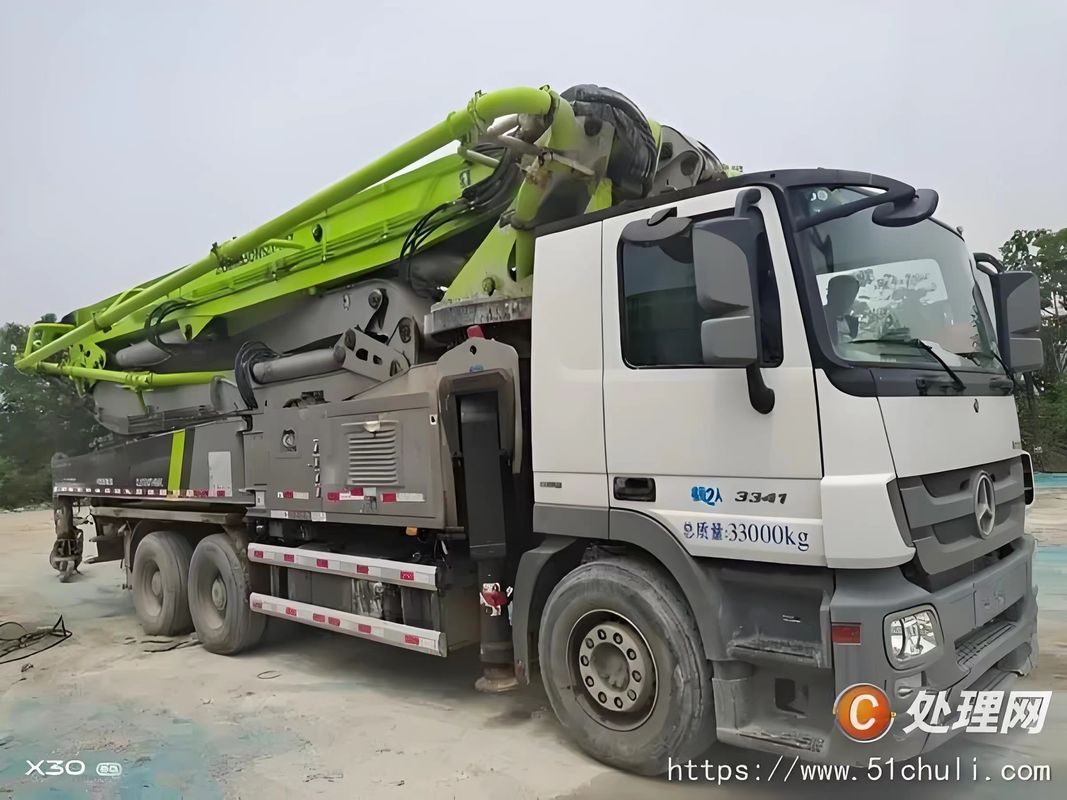

Zoom Line Second Hand Concrete Pump Boom Truck 49M 36m 50m

Product Details

Place of Origin: Hunan

Brand Name: Sany

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD40000-70000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                ZoomLine Second Hand Concrete Pump, 49M Second Hand Concrete Pump, 50m zoom line concrete pump


Pumping Cylinder Stroke:	1800mm	Max. Aggregate Size:	40mm
Pumping Cylinder Diameter:	200mm	Max. Concrete Output Pressure:	16MPa
S Valve Type:	S Valve	Capacity:	60m3/h
Hopper Capacity:	0.6m3	Model:	HBT60C-1816
Diesel Engine Power:	129kW	Hydraulic Oil Tank Capacity:	500L
Hydraulic System Type:	Open Loop	Max. Theoretical Vertical Conveying Distance:	150m
Max. Theoretical Horizontal Conveying Distance:	600m

Pumping Cylinder Stroke:	1800mm
Max. Aggregate Size:	40mm
Pumping Cylinder Diameter:	200mm
Max. Concrete Output Pressure:	16MPa
S Valve Type:	S Valve
Capacity:	60m3/h
Hopper Capacity:	0.6m3
Model:	HBT60C-1816
Diesel Engine Power:	129kW
Hydraulic Oil Tank Capacity:	500L
Hydraulic System Type:	Open Loop
Max. Theoretical Vertical Conveying Distance:	150m
Max. Theoretical Horizontal Conveying Distance:	600m

Zoom Line Second Hand Concrete Pump Boom Truck 49M 36m 50m

Product Specifications

Attribute	Value
Pumping Cylinder Stroke	1800mm
Max. Aggregate Size	40mm
Pumping Cylinder Diameter	200mm
Max. Concrete Output Pressure	16MPa
S Valve Type	S Valve
Capacity	60m³/h
Hopper Capacity	0.6m³
Model	HBT60C-1816
Diesel Engine Power	129kW
Hydraulic Oil Tank Capacity	500L
Hydraulic System Type	Open Loop
Max. Theoretical Vertical Conveying Distance	150m
Max. Theoretical Horizontal Conveying Distance	600m

Product Description

The Zoomlion 37M concrete pump truck is an innovative and reliable machine designed for efficient concrete placement on construction sites. Manufactured by Zoomlion Heavy Industry Science & Technology Co., Ltd., this pump truck combines advanced technology, robust construction, and precise control to meet diverse construction needs.

Key Features

Boom Length and Reach: Features a 37 meter (121 feet) boom for precise concrete placement at various heights and distances, with multiple sections for flexible positioning.
Pumping Capacity: Delivers up to 120 cubic meters per hour (157 cubic yards per hour) for efficient concrete delivery on both large and small-scale projects.
Boom Configuration: 4-section Z-shaped design provides excellent flexibility and agility for placement in tight or complex spaces.

Truck-mounted Concrete Pump Specifications

Vertical Reach	Output	Pressure	Models
24-36m	100 - 150m³/h	6 - 6.6MPa	SYG5210THB 25C-8(SZ-EU) / SYG5210THB 25C-8(SZ-EU) / SYM5180THBES 30C-8 / SYG5210THB 30V8(SZ-AUS) / SYG5180THB 300C-8(SZ-IN) / SYG5181THB 30C-8(SZ-IDN)
37m	48 - 160m³/h	6 - 13MPa	SYM5230THB 370C-10 / SYG5231THBCS 370C-10 / SYG5231THBCS 370C-10(R) / SYG5232THBES 370C-10(R) / SYG5260THB 370C-10 / SYG5261THBES 370C-10 / ...
38-48m	120 - 200m³/h	7 - 12MPa	SYG5270THB 380C-10(SZ-AM) / SYG5280THB 38(SZ-AUS) / SYG5280THB 380C-10(SZ-IS) / SYG5260THB 390C-10 / SYG5310THBES 430C-10 / SYG5370THB 430C-10(SZ-IS) /...
49-55m	120 - 200m³/h	7 - 12MPa	SYG5340THB 490C-10 / SYG5341THB 490C-10 / SYG5341THB 490C-10(R) / SYG5342THB 490C-10(R) / SYG5350THBCB 490C-10 / SYG5370THBES 490C-10 / SYG5371THBCB 490C-10 / ...
56-60m	120 - 200m³/h	7 - 12MPa	SYG5441THBCB 560C-10 / SYG5443THBCS 560C-10 / SYG5443THBCS 560C-10(R) / SYG5445THBES 560C-10(R) / SYG5445THBES 560C-10 / SYG5450THB 56(SZ-EU) / ...
over 60m	120 - 200m³/h	8.3 - 12MPa	SYM5502THB 620C-10A / SYG5570THB 62(SZ-EU) / SYM5525THB 650C-10 / SYG5590THB 67(SZ-EU) / SYM5590THB 680C-10(SZ-AM)
