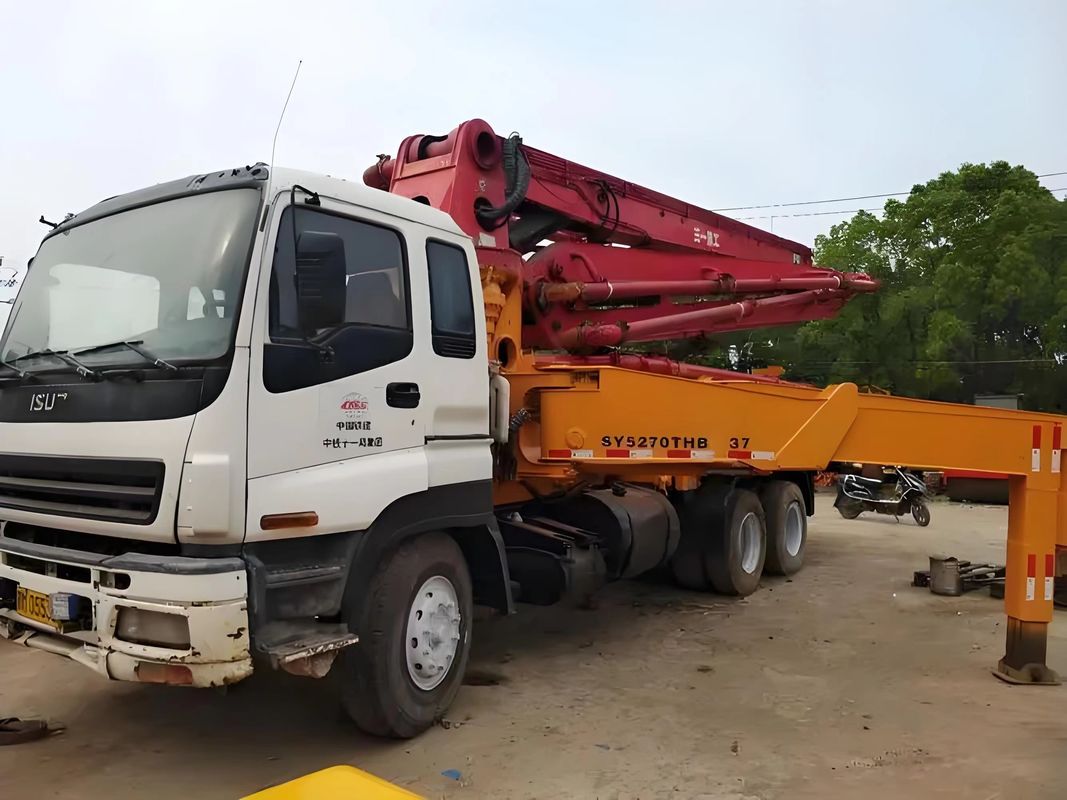

350L Ready Mixed Second Hand Concrete Pump Machinery For Industrial Facilities

Product Details

Place of Origin: Hunan

Brand Name: Sany

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD40000-70000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                350L Second Hand Concrete Pump, industrial Second Hand Concrete Pump, industrial ready mixed concrete pumped


Oil Tank Capacity:	350L	Hydraulic System Pressure:	32MPa
Dimension:	5500mm2000mm2200mm	Max. Vertical Pumping Distance:	200m
Max. Concrete Output:	60m3/h	Hopper Capacity:	0.6m3
Max. Concrete Pressure:	18MPa	Model:	HBT60C-1816D
Engine Power:	129kW	Weight:	6000kg
Max. Horizontal Pumping Distance:	800m	Power Type:	Diesel
Max. Aggregate Size:	40mm

Oil Tank Capacity:	350L
Hydraulic System Pressure:	32MPa
Dimension:	5500mm2000mm2200mm
Max. Vertical Pumping Distance:	200m
Max. Concrete Output:	60m3/h
Hopper Capacity:	0.6m3
Max. Concrete Pressure:	18MPa
Model:	HBT60C-1816D
Engine Power:	129kW
Weight:	6000kg
Max. Horizontal Pumping Distance:	800m
Power Type:	Diesel
Max. Aggregate Size:	40mm

350L Ready Mixed Second Hand Concrete Pump Machinery For Industrial Facilities

Product Specifications

Attribute	Value
Oil Tank Capacity	350L
Hydraulic System Pressure	32MPa
Dimension	5500mm2000mm2200mm
Max. Vertical Pumping Distance	200m
Max. Concrete Output	60m³/h
Hopper Capacity	0.6m³
Max. Concrete Pressure	18MPa
Model	HBT60C-1816D
Engine Power	129kW
Weight	6000kg
Max. Horizontal Pumping Distance	800m
Power Type	Diesel
Max. Aggregate Size	40mm

Product Features

Precise Placement: Versatile boom configuration and precise control system allow for accurate concrete placement in challenging areas like high-rise structures or confined spaces, ensuring optimal distribution and minimal wastage.
Versatility: Suitable for residential, commercial, and industrial construction projects. Handles various concrete mixes to accommodate diverse construction requirements.
Safety and Reliability: Built with high-quality components and advanced safety features, ensuring stable performance and operator safety.

Truck-mounted Concrete Pump Specifications

Vertical Reach	Output	Pressure	Models
24-36m	100 - 150m³/h	6 - 6.6MPa	SYG5210THB 25C-8(SZ-EU) / SYG5210THB 25C-8(SZ-EU) / SYM5180THBES 30C-8 / SYG5210THB 30V8(SZ-AUS) / SYG5180THB 300C-8(SZ-IN) / SYG5181THB 30C-8(SZ-IDN)
37m	48 - 160m³/h	6 - 13MPa	SYM5230THB 370C-10 / SYG5231THBCS 370C-10 / SYG5231THBCS 370C-10(R) / SYG5232THBES 370C-10(R) / SYG5260THB 370C-10 / SYG5261THBES 370C-10 / ...
38-48m	120 - 200m³/h	7 - 12MPa	SYG5270THB 380C-10(SZ-AM) / SYG5280THB 38(SZ-AUS) / SYG5280THB 380C-10(SZ-IS) / SYG5260THB 390C-10 / SYG5310THBES 430C-10 / SYG5370THB 430C-10(SZ-IS) /...
49-55m	120 - 200m³/h	7 - 12MPa	SYG5340THB 490C-10 / SYG5341THB 490C-10 / SYG5341THB 490C-10(R) / SYG5342THB 490C-10(R) / SYG5350THBCB 490C-10 / SYG5370THBES 490C-10 / SYG5371THBCB 490C-10 / ...
56-60m	120 - 200m³/h	7 - 12MPa	SYG5441THBCB 560C-10 / SYG5443THBCS 560C-10 / SYG5443THBCS 560C-10(R) / SYG5445THBES 560C-10(R) / SYG5445THBES 560C-10 / SYG5450THB 56(SZ-EU) / ...
over 60m	120 - 200m³/h	8.3 - 12MPa	SYM5502THB 620C-10A / SYG5570THB 62(SZ-EU) / SYM5525THB 650C-10 / SYG5590THB 67(SZ-EU) / SYM5590THB 680C-10(SZ-AM)

Summary

The 350L Ready Mixed Concrete Pump Machinery offers advanced technology, exceptional reach, and high pumping capacity, making it ideal for industrial and large-scale construction projects. With its precision, versatility, and safety features, this pump enhances efficiency and productivity for complex construction ventures.
