Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Repositioning Second Hand Concrete Pump, Second Hand Concrete Pump Machine, Repositioning used concrete pump machine


Maximum Output:	97 M3/h	Maximum Vertical Pumping Distance:	100 M
Concrete Cylinder Diameter:	200 Mm	Maximum Horizontal Pumping Distance:	300 M
Model:	BSA 1409 D	Hydraulic System Type:	Open Loop
Year Of Manufacture:	2015	Maximum Aggregate Size:	40 Mm
Maximum Pressure:	106 Bar	Engine Power:	140 KW
Weight:	6000 Kg	Concrete Cylinder Stroke:	1400 Mm
Hopper Capacity:	350 L

Maximum Output:	97 M3/h
Maximum Vertical Pumping Distance:	100 M
Concrete Cylinder Diameter:	200 Mm
Maximum Horizontal Pumping Distance:	300 M
Model:	BSA 1409 D
Hydraulic System Type:	Open Loop
Year Of Manufacture:	2015
Maximum Aggregate Size:	40 Mm
Maximum Pressure:	106 Bar
Engine Power:	140 KW
Weight:	6000 Kg
Concrete Cylinder Stroke:	1400 Mm
Hopper Capacity:	350 L

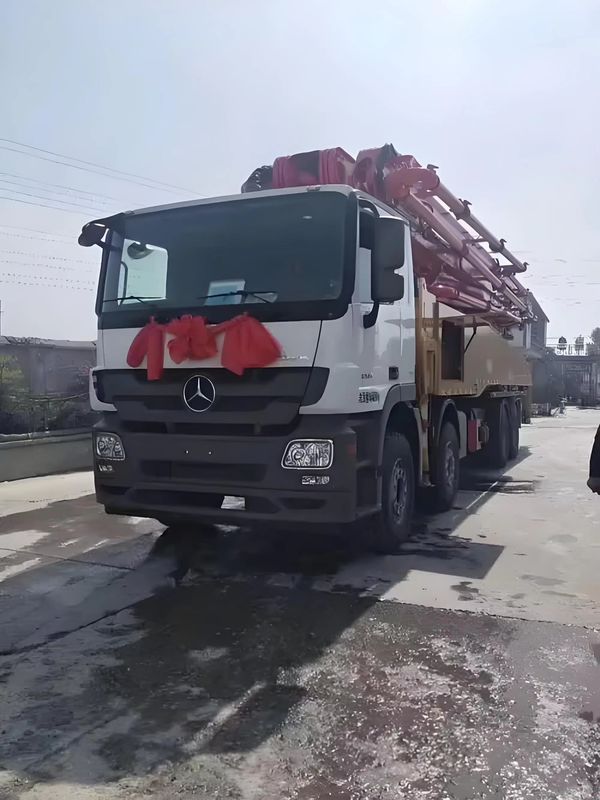

Repositioning Truck Mounted Long Second Hand Concrete Pump Machine SANY

Product Specifications

Attribute	Value
Maximum Output	97 m³/h
Maximum Vertical Pumping Distance	100 m
Concrete Cylinder Diameter	200 mm
Maximum Horizontal Pumping Distance	300 m
Model	BSA 1409 D
Hydraulic System Type	Open Loop
Year Of Manufacture	2015
Maximum Aggregate Size	40 mm
Maximum Pressure	106 bar
Engine Power	140 kW
Weight	6000 kg
Concrete Cylinder Stroke	1400 mm
Hopper Capacity	350 L

Product Features

360° Slewing Range: The boom rotates fully for maximum positioning flexibility, enabling efficient concrete placement without truck repositioning.
Advanced Control System: Features precise control over boom movements and pumping parameters with real-time monitoring and diagnostics.
Enhanced Stability & Safety: Robust outriggers provide excellent stability on uneven terrain, with anti-vibration technology and hydraulic overload protection.
High-Performance Engine: Diesel-powered for reliable operation, driving the pumping system and hydraulic functions with optimal efficiency.

Model Specifications

Vertical Reach	Output	Pressure	Models
24-36m	100 - 150m³/h	6 - 6.6MPa	SYG5210THB 25C-8(SZ-EU) / SYG5210THB 25C-8(SZ-EU) / SYM5180THBES 30C-8 / SYG5210THB 30V8(SZ-AUS) / SYG5180THB 300C-8(SZ-IN) / SYG5181THB 30C-8(SZ-IDN)
37m	48 - 160m³/h	6 - 13MPa	SYM5230THB 370C-10 / SYG5231THBCS 370C-10 / SYG5231THBCS 370C-10(R) / SYG5232THBES 370C-10(R) / SYG5260THB 370C-10 / SYG5261THBES 370C-10 / ...
38-48m	120 - 200m³/h	7 - 12MPa	SYG5270THB 380C-10(SZ-AM) / SYG5280THB 38(SZ-AUS) / SYG5280THB 380C-10(SZ-IS) / SYG5260THB 390C-10 / SYG5310THBES 430C-10 / SYG5370THB 430C-10(SZ-IS) /...
49-55m	120 - 200m³/h	7 - 12MPa	SYG5340THB 490C-10 / SYG5341THB 490C-10 / SYG5341THB 490C-10(R) / SYG5342THB 490C-10(R) / SYG5350THBCB 490C-10 / SYG5370THBES 490C-10 / SYG5371THBCB 490C-10 / ...
56-60m	120 - 200m³/h	7 - 12MPa	SYG5441THBCB 560C-10 / SYG5443THBCS 560C-10 / SYG5443THBCS 560C-10(R) / SYG5445THBES 560C-10(R) / SYG5445THBES 560C-10 / SYG5450THB 56(SZ-EU) / ...
Over 60m	120 - 200m³/h	8.3 - 12MPa	SYM5502THB 620C-10A / SYG5570THB 62(SZ-EU) / SYM5525THB 650C-10 / SYG5590THB 67(SZ-EU) / SYM5590THB 680C-10(SZ-AM)
