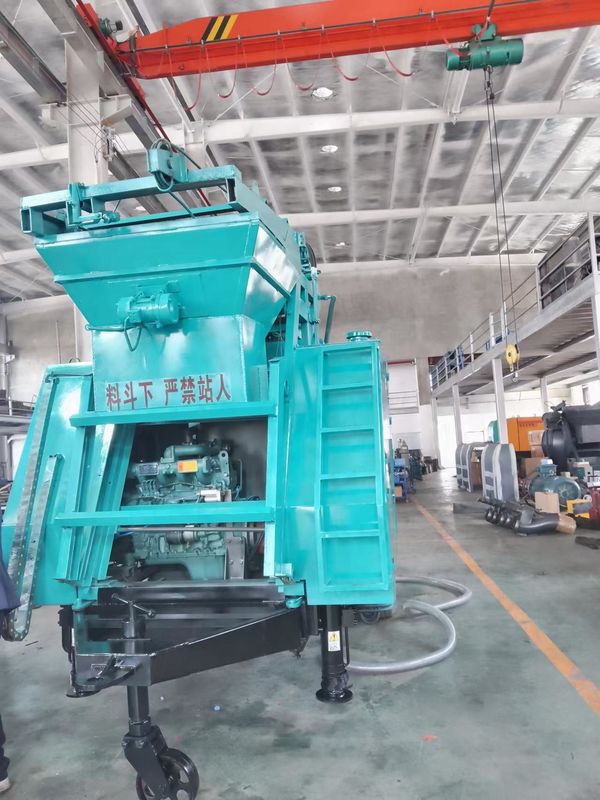

Construction Portable Stationary Concrete Pump Mixer Self Loading

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: T6

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD18000-25000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Portable Stationary Concrete Pump, Self Loading Stationary Concrete Pump, construction Portable Concrete pump


Application:	Concrete Pump	After-sales Service Provided:	Online Support
Weight:	9750kg	Feature:	Easy Operation
Main Motor Power:	90kW	Mixer Mode:	JZC350
Wheel Number:	4	Applicable Industries:	Construction Works
Power Type:	Diesel	Max. Theoretical Horizontal Pumping Distance:	600m
Max. Theoretical Concrete Output Pressure:	10Mpa	Legs:	Hydraulic Cylinder Legs
Total Weight:	5000kg	Max. Theoretical Output:	50m³/h
Max. Aggregate Size:	40mm	Hydraulic System Type:	Open Loop
Pump Pressure:	6MPa

Application:	Concrete Pump
After-sales Service Provided:	Online Support
Weight:	9750kg
Feature:	Easy Operation
Main Motor Power:	90kW
Mixer Mode:	JZC350
Wheel Number:	4
Applicable Industries:	Construction Works
Power Type:	Diesel
Max. Theoretical Horizontal Pumping Distance:	600m
Max. Theoretical Concrete Output Pressure:	10Mpa
Legs:	Hydraulic Cylinder Legs
Total Weight:	5000kg
Max. Theoretical Output:	50m³/h
Max. Aggregate Size:	40mm
Hydraulic System Type:	Open Loop
Pump Pressure:	6MPa

Construction Portable Stationary Concrete Pump Mixer Self Loading

Product Specifications

Application	Concrete pump
After-sales service	Online support
Weight	9750kg
Feature	Easy Operation
Main Motor Power	90kW
Mixer Mode	JZC350
Wheel Number	4
Applicable Industries	Construction Works
Power Type	Diesel
Max. Theoretical Horizontal Pumping Distance	600m
Max. Theoretical Concrete Output Pressure	10Mpa
Legs	Hydraulic cylinder legs
Total Weight	5000kg
Max. Theoretical Output	50m³/h
Max. Aggregate Size	40mm
Hydraulic System Type	Open Loop
Pump Pressure	6MPa

Product Description

Our patented Portable Concrete Mixer and Pump combines traditional concrete pumping with mixing capabilities, making it ideal for 4-6 floor buildings, group constructions, bridges, and small construction sites requiring on-site concrete mixing.

Key Advantages

Accessibility: Reaches challenging construction sites with limited space or obstacles that hinder traditional concrete delivery methods.
Cost Savings: Reduces manual labor and equipment needs while minimizing material wastage through precise concrete control.
On-Site Mixing: Eliminates pre-mixed concrete transportation, ensuring fresh concrete availability for high-quality, durable construction.

This versatile solution integrates mixing and pumping functions to enhance productivity, convenience, and cost-effectiveness for construction projects of various sizes and complexities.

Technical Specifications by Model

Item	HBTS30R	HBTS40R	HBTS60R	HBTS80-13R	HBTS90-16R
Theoretical Displacement (m³/h)	30	40/26	60/38	80/73	90/50
Maximum Outlet pressure (Mpa)	10	10/6	12/7	13/7.5	16/9
Max. Conveying distance V.H.	140/600	140/600	160/800	180/900	260/1000
Engine Power (kw)	62.5	62.5	82	129	146
Delivery Cylinder Bore *Stroke (mm)	160*1000	160*1300	180*1300	200*1650	200*1800
Main Cylinder Bore *Stroke (mm)	100*1000	100*1300	110*1300	125*1650	140*1800
High And Low Voltage Switching	No	Have	Have	Have	Have
Hydraulic Tank Volume (l)	300	350	400	50	500
Hopper Volume (l)	90	90	115	230	230
Fuel Tank Volume (m³)	0.4	0.4	0.5	0.8
