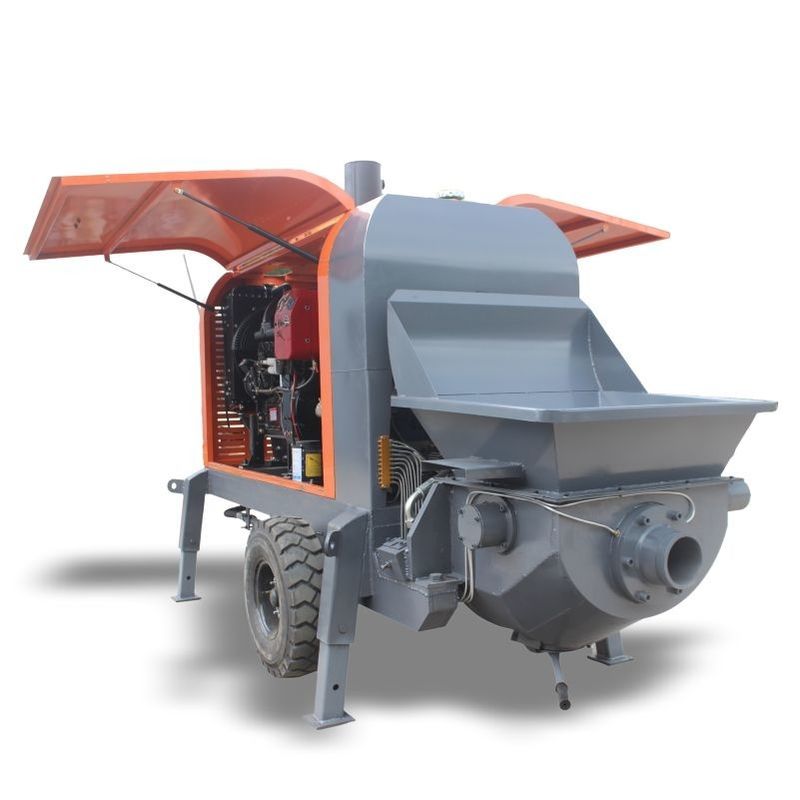

Diesel Trailer Concrete Portable Pump Mini Machinery For Concrete Placement

Name: Diesel Trailer Concrete Portable Pump Mini Machinery For Concrete Placement
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT40
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT40

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                Diesel Trailer concrete portable pump, placement concrete portable pump, Trailer portable mini concrete pump


Application:	Concrete Pump,Trailer Pump	Warranty:	3 Years
Model:	HBT40

Application:	Concrete Pump,Trailer Pump
Warranty:	3 Years
Model:	HBT40

Diesel Trailer Concrete Portable Pump Mini Machinery For Concrete Placement

Product Specifications

Application	Concrete pump, Trailer Pump
Warranty	3 years
Model	HBT40

Product Overview

The HBT series concrete pumps represent advanced concrete machinery developed using modern technology. These high-tech machines incorporate international standards and design experience to replace traditional manual concrete lifting methods. Available with diesel engine or electric motor drive options, featuring S valve or gate valve pumps with excellent technical performance, high-standard configuration, and superior reliability.

Technical Parameters

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800
Hopper Capacity*Feeding Height	L*mm	350*1000	350*1100	600*1400	600*1400	600*1400
Max.Aggregate Size	mm	Pebble:20; Crushed Stone:20	Pebble:20; Crushed Stone:20	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40
Total Weight	kg	2300	2500	4500	6000	6100
Dimension(LWH)	mm	380015001600	450015001650	510017002000	640021002200	640021002200

Key Features

High Efficiency: With a maximum output capacity of 40 cubic meters per hour, the HBT40 enables fast and continuous concrete pumping
Dual Power Options: Available with either diesel engine or electric motor drive for flexible operation
Advanced Valve System: Features S valve or gate valve pumps with superior technical performance
Portable Design: Compact trailer-mounted configuration for easy transportation between job sites
Reliable Construction: High-standard components and robust design ensure long-term durability
