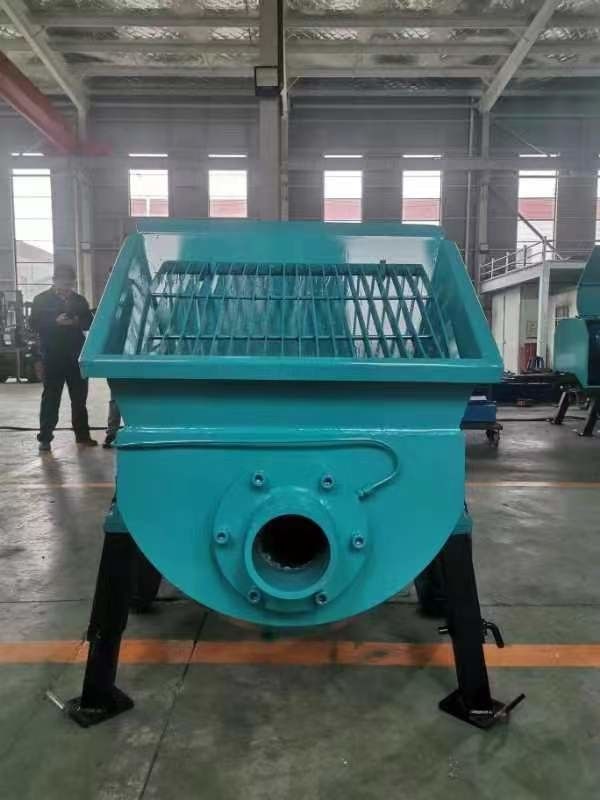

Heavy Duty Commercial Stationary Concrete Pump Mortar Mixer Machine

Name: Heavy Duty Commercial Stationary Concrete Pump Mortar Mixer Machine
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT30
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                Commercial Stationary Concrete Pump, Mortar Stationary Concrete Pump, Stationary mortar pump machine


Application:	Concrete Pump,Trailer Pump	Warranty:	3 Years
Model:	HBT30

Application:	Concrete Pump,Trailer Pump
Warranty:	3 Years
Model:	HBT30

Heavy Duty Commercial Stationary Concrete Pump Mortar Mixer Machine

Product Specifications

Attribute	Value
Application	Concrete Pump, Trailer Pump
Warranty	3 Years
Model	HBT30

Product Overview

The HBT30 concrete pump is a trailer-mounted unit from the HBT series, designed for efficient concrete transportation and placement in construction projects. Its compact size, versatility, and reliable performance make it ideal for small to medium-sized projects.

Key Features

Trailer-Mounted Design: Offers excellent mobility between job sites with compact dimensions for maneuverability in tight spaces.
Hydraulic Piston Pumping System: Ensures smooth concrete flow through delivery pipelines for precise placement and reduced blockages.
High Performance: Maximum output of 30 m³/h (39 yd³/h) and pumping pressure of 10 MPa (1450 psi) suitable for residential, commercial, and light industrial applications.

Technical Specifications

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800
Hopper Capacity*Feeding Height	L*mm	350*1000	350*1100	600*1400	600*1400	600*1400
Max.Aggregate Size	mm	Pebble:20; Crushed Stone:20	Pebble:20; Crushed Stone:20	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40
Total Weight	kg	2300	2500	4500	6000	6100
Dimension(LWH)	mm	380015001600	450015001650	510017002000	640021002200
