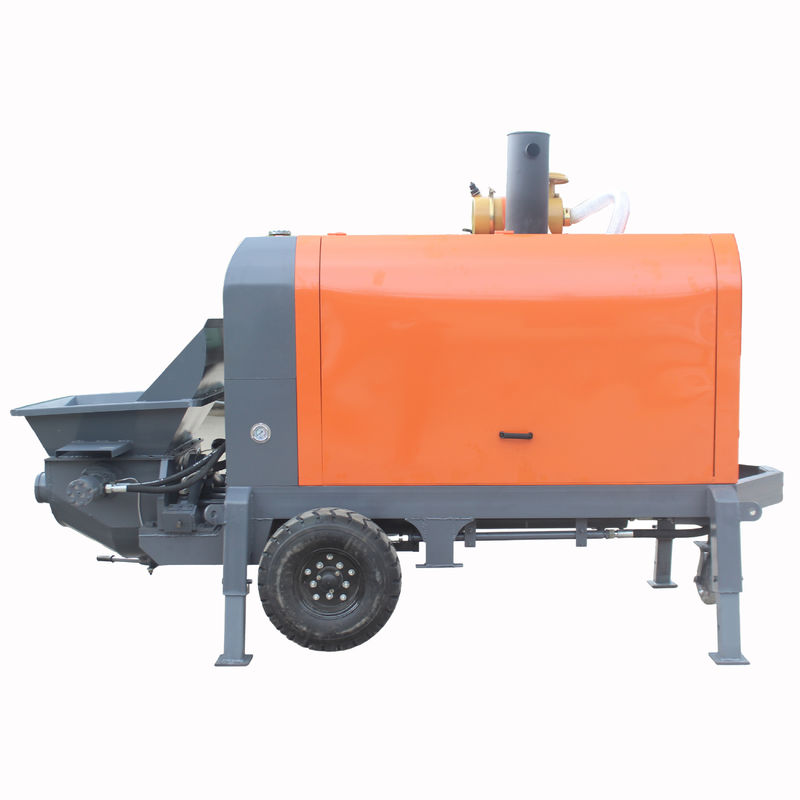

Small Cement Concrete Pouring Pump Machine Diesel Electric For Concrete Transportation

Name: Small Cement Concrete Pouring Pump Machine Diesel Electric For Concrete Transportation
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT40
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT40

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Small concrete pouring pump machine, Diesel concrete pouring pump machine, Diesel cement pump machine


Application:	Concrete Pump,Trailer Pump	Warranty:	3 Years
Model:	HBT40	Pump Output:	20 M³/h
Generator Power:	50kw	Main Motor Power:	90kW
Mixer Mode:	JZM350	Pipe Diameter:	100 Or 125mm
Max. Theoretical Pressure:	8MPa	Oil Tank Capacity:	500L
Max. Aggregate Size:	40mm	Hopper Capacity:	600L
Concrete Cylinder Stroke:	1800mm	Pumping System:	Hydraulic
Loader Type:	ZL12	Max. Theoretical Output:	120m3/h
Total Weight:	6150	Max. Horizontal Conveying Distance:	800m

Application:	Concrete Pump,Trailer Pump
Warranty:	3 Years
Model:	HBT40
Pump Output:	20 M³/h
Generator Power:	50kw
Main Motor Power:	90kW
Mixer Mode:	JZM350
Pipe Diameter:	100 Or 125mm
Max. Theoretical Pressure:	8MPa
Oil Tank Capacity:	500L
Max. Aggregate Size:	40mm
Hopper Capacity:	600L
Concrete Cylinder Stroke:	1800mm
Pumping System:	Hydraulic
Loader Type:	ZL12
Max. Theoretical Output:	120m3/h
Total Weight:	6150
Max. Horizontal Conveying Distance:	800m

Small Cement Concrete Pouring Pump Machine Diesel Electric For Concrete Transportation

Product Attributes

Attribute	Value
Application	Concrete pump, Trailer Pump
Warranty	3 years
Model	HBT40
Pump Output	20 m³/h
Generator Power	50kw
Main Motor Power	90kW
Mixer Mode	JZM350
Pipe Diameter	100 or 125mm
Max. Theoretical Pressure	8MPa
Oil Tank Capacity	500L
Max. Aggregate Size	40mm
Hopper Capacity	600L
Concrete Cylinder Stroke	1800mm
Pumping System	Hydraulic
Loader Type	ZL12
Max. Theoretical Output	120m3/h
Total Weight	6150 kg
Max. Horizontal Conveying Distance	800m

Product Description

The HBT40 concrete pump is a trailer-mounted concrete pump designed for efficient and reliable transportation and placement of concrete in construction projects. Known for its versatility, durability, and ease of operation, this model is ideal for various construction applications.

Key Features

Trailer-Mounted Design: Provides excellent mobility and easy transportation between job sites with quick setup capabilities.
Hydraulic Pumping System: Features a reliable piston pumping system that ensures smooth concrete flow and minimizes blockages.
High Performance: Delivers a maximum output of 40 cubic meters per hour with pumping pressure up to 10 MPa, suitable for small to medium construction projects.
Durable Construction: Built to withstand demanding work environments with robust components and materials.

Technical Specifications

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800
Hopper Capacity*Feeding Height	L*mm	350*1000	350*1100	600*1400	600*1400	600*1400
Max.Aggregate Size	mm	Pebble:20; Crushed Stone:20	Pebble:20; Crushed Stone:20	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40
Total Weight	kg	2300	2500	4500	6000	6100
