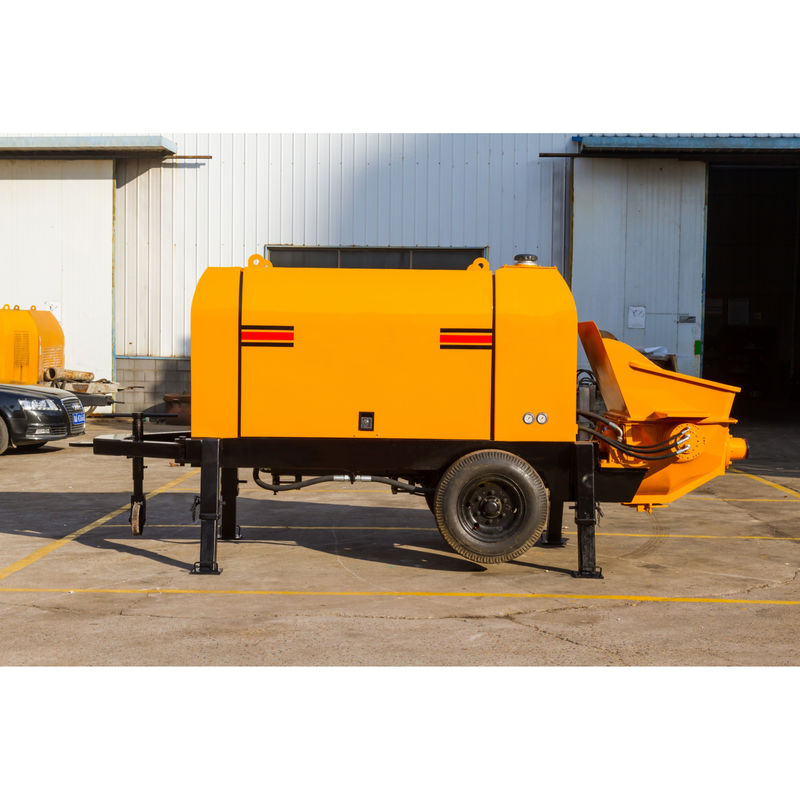

Automatic Stationary Concrete Pump System For Mortar Grout 35kw

Name: Automatic Stationary Concrete Pump System For Mortar Grout 35kw
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT80
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT80

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic Stationary Concrete Pump, 35kw Stationary Concrete Pump, 35kw mortar grout pump


Application:	Construction Industry( Tralier Pump)	Warranty:	3 Years
Model:	HBT80	Pipe Diameter:	100 Or 125mm
Main Motor Power:	90kW	Max. Aggregate Size:	40mm
Power:	186kw	Applicable Industries:	Construction Works
Max. Vertical Conveying Distance:	200m	Type:	Stationary
Max. Theoretical Pressure:	8MPa	Hydraulic System Pressure:	32MPa
Loader Type:	ZL12	Mixer Mode:	JZM350
Pump Output:	20 M³/h	Max. Theoretical Output:	120m3/h
Wheel Number:	4

Application:	Construction Industry( Tralier Pump)
Warranty:	3 Years
Model:	HBT80
Pipe Diameter:	100 Or 125mm
Main Motor Power:	90kW
Max. Aggregate Size:	40mm
Power:	186kw
Applicable Industries:	Construction Works
Max. Vertical Conveying Distance:	200m
Type:	Stationary
Max. Theoretical Pressure:	8MPa
Hydraulic System Pressure:	32MPa
Loader Type:	ZL12
Mixer Mode:	JZM350
Pump Output:	20 M³/h
Max. Theoretical Output:	120m3/h
Wheel Number:	4

Automatic Stationary Concrete Pump System For Mortar Grout 35kw

Product Overview

The HBT80 concrete pump is a high-performance, tractor-mounted cement pump designed for efficient concrete delivery in construction projects. This automatic concrete pump combines advanced technology with robust engineering to streamline concrete placement operations.

Key Specifications

Model

HBT80

Main Motor Power

90kW

Max. Output

120m³/h

Max. Vertical Distance

200m

Pipe Diameter

100 or 125mm

Warranty

3 years

Technical Features

Advanced S-valve pump system for reliable concrete delivery
Dual power options: electric or diesel engine drive
High-pressure hydraulic system (32MPa)
ZL12 loader type with JZM350 mixer mode
Maximum aggregate size capacity of 40mm
Precision control system for optimal operation

System Components

The HBT series concrete pumps incorporate several critical components that work together to deliver superior performance:

Mixing System: Twin-shaft paddle mixer ensures homogeneous concrete mixture
Pumping System: Hydraulic piston design for efficient concrete transport
Hopper & S-valve: Controls concrete flow and prevents backflow
Power Options: Diesel or electric engine configurations available
Control System: Intuitive interface for precise operation monitoring

Performance Specifications

Parameter	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Rater Power	kw	35	45	55	90	90
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800

Application

This stationary concrete pump system is specifically designed for construction industry applications, particularly suited for trailer pump operations in various construction works. Its robust design and high performance make it ideal for demanding concrete placement requirements.
