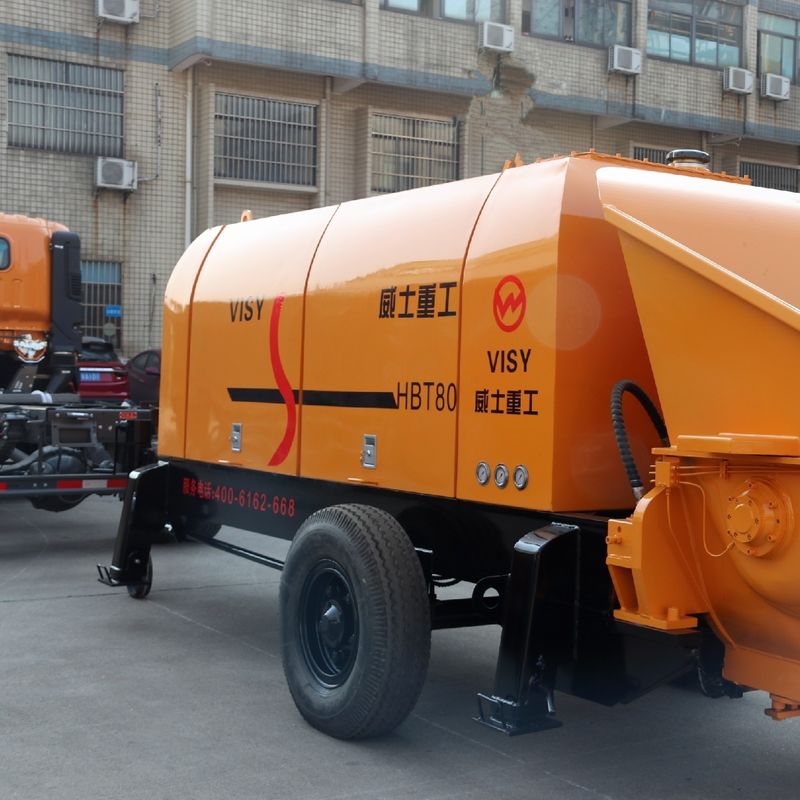

Portable Diesel Stationary Concrete Pump On Site Mixing For Building Construction

Name: Portable Diesel Stationary Concrete Pump On Site Mixing For Building Construction
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT80
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT80

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Diesel Stationary Concrete Pump, Onsite Stationary Concrete Pump, Onsite concrete portable pump


Application:	Construction Industry( Tralier Pump)	Warranty:	3 Years
Model:	HBT80	Weight:	6685kg
Control System:	PLC	Pump Pressure:	6 MPa
Mixer Mode:	JZC350	Color:	Customized
Lubrication System:	Automatic	Wheel Number:	4
Feature:	Easy Operation	Boom Type:	Rolling
Hopper Capacity:	0.6m3	Pump Output:	20 M³/h
Loader Type:	ZL12	Generator Power:	50kw
Output:	80 Cube Meter Per Hour

Application:	Construction Industry( Tralier Pump)
Warranty:	3 Years
Model:	HBT80
Weight:	6685kg
Control System:	PLC
Pump Pressure:	6 MPa
Mixer Mode:	JZC350
Color:	Customized
Lubrication System:	Automatic
Wheel Number:	4
Feature:	Easy Operation
Boom Type:	Rolling
Hopper Capacity:	0.6m3
Pump Output:	20 M³/h
Loader Type:	ZL12
Generator Power:	50kw
Output:	80 Cube Meter Per Hour

Portable Diesel Stationary Concrete Pump On Site Mixing For Building Construction

Product Specifications

Attribute	Value
Application	Construction Industry (Trailer Pump)
Warranty	3 years
Model	HBT80
Weight	6685kg
Control System	PLC
Pump Pressure	6 MPa
Mixer Mode	JZC350
Color	Customized
Lubrication System	Automatic
Wheel Number	4
Feature	Easy Operation
Boom Type	Rolling
Hopper Capacity	0.6m³
Pump Output	20 m³/h
Loader Type	ZL12
Generator Power	50kw
Output	80 cubic meters per hour

Product Overview

The HBT series concrete pumps represent advanced concrete machinery developed using modern technology. These high-tech machines incorporate international standards and design experience to replace traditional manual concrete lifting methods. Available with diesel engine or motor drive options, they feature S valve and gate valve pumps with excellent technical performance, high-standard configuration, and superior reliability.

Key Advantages

Efficiency and Time Savings: Combines mixing and pumping functions to eliminate separate equipment needs and reduce production/transportation time.
Versatility: Handles various concrete mixes including low/high slump and lightweight concrete for foundations, slabs, walls, and vertical placements.
Accessibility: Ideal for congested or restricted construction sites with limited space or movement obstacles.
Cost Savings: Reduces labor requirements and equipment costs while minimizing material wastage through precise control.
On-Site Mixing: Eliminates pre-mixed concrete transportation, ensuring fresh concrete availability for high-quality construction.

Technical Parameters

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve

This concrete mixing pump provides a versatile and efficient solution for construction projects of various sizes. Its integrated mixing and pumping capabilities deliver significant productivity, convenience, and cost-effectiveness benefits for modern construction applications.
