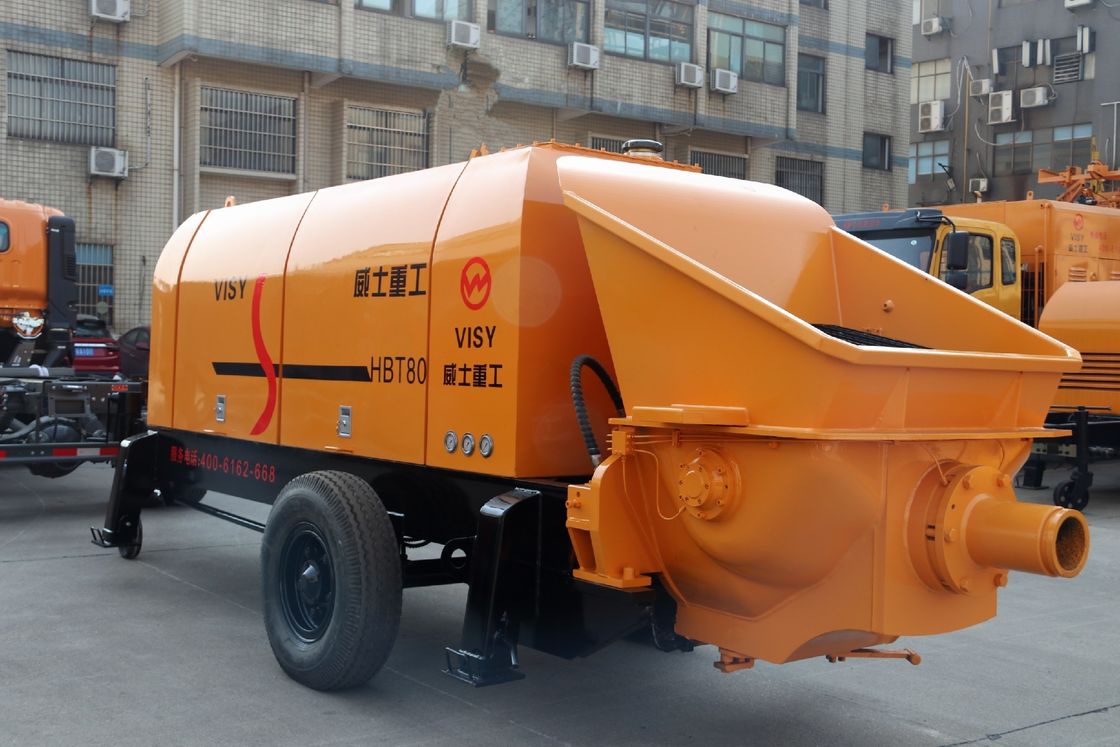

Mortar RMC Portable Concrete Pumping Machine Diesel Engine 55kw

Name: Mortar RMC Portable Concrete Pumping Machine Diesel Engine 55kw
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT80
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT80

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                RMC portable concrete pumping machine, 55kw portable concrete pumping machine, Portable rmc pumping machine


Application:	Concrete Pump,Trailer Pump	Warranty:	3 Years
Model:	HBT80

Application:	Concrete Pump,Trailer Pump
Warranty:	3 Years
Model:	HBT80

Mortar RMC Portable Concrete Pumping Machine Diesel Engine 55kw

Product Specifications

Attribute	Value
Application	Concrete pump, Trailer Pump
Warranty	3 years
Model	HBT80

Product Overview

The HBT80 concrete mortar pump is a compact construction diesel mini concrete mixer pump that combines advanced technology with practical functionality. This high-tech concrete machinery incorporates international advanced technology and design experience to replace traditional manual concrete lifting methods.

Available in both diesel engine and electric motor drive options, the HBT series features S valve and gate valve pumps with excellent technical performance, high-standard configuration, and superior reliability.

Technical Parameters

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800
Hopper Capacity*Feeding Height	L*mm	350*1000	350*1100	600*1400	600*1400	600*1400
Max.Aggregate Size	mm	Pebble:20; Crushed Stone:20	Pebble:20; Crushed Stone:20	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40
Total Weight	kg	2300	2500	4500	6000	6100
Dimension(LWH)	mm	380015001600	450015001650	510017002000	640021002200	640021002200

Integrated Functionality

The concrete mixing pump combines the functions of a concrete mixer and concrete pump in a single piece of equipment. This innovative solution enables efficient concrete preparation and placement, significantly improving construction productivity while reducing labor requirements.
