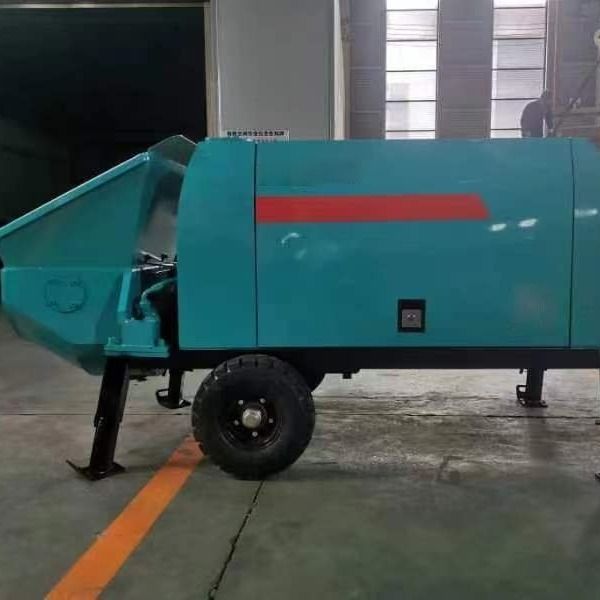

30m3/H 45kw Diesel Engine Mortar Pump Machine Stationary Pumpcrete

Name: 30m3/H 45kw Diesel Engine Mortar Pump Machine Stationary Pumpcrete
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT30
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                45kw mortar pump machine, Diesel mortar pump machine, 45kw stationary pumpcrete


Application:	Concrete Pump,Trailer Pump	Warranty:	3 Years
Model:	HBT30

Application:	Concrete Pump,Trailer Pump
Warranty:	3 Years
Model:	HBT30

30m3/H 45kw Diesel Engine Mortar Pump Machine Stationary Pumpcrete

Product Specifications

Attribute	Value
Application	Concrete pump, Trailer Pump
Warranty	3 years
Model	HBT30

Product Overview

The HBT series 30m³/h 45kw diesel engine portable trailer mounted concrete pump is a high-performance concrete transfer solution. These advanced pumps incorporate modern technology to efficiently transport concrete, eliminating the need for manual labor.

HBT series concrete pumps represent state-of-the-art concrete machinery developed using advanced engineering. These high-tech machines combine international technology and design expertise, offering superior performance with diesel engine or motor drive options in both S valve and gate valve pump configurations.

Technical Specifications

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800
Hopper Capacity*Feeding Height	L*mm	350*1000	350*1100	600*1400	600*1400	600*1400
Max.Aggregate Size	mm	Pebble:20; Crushed Stone:20	Pebble:20; Crushed Stone:20	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40
Total Weight	kg	2300	2500	4500	6000	6100
