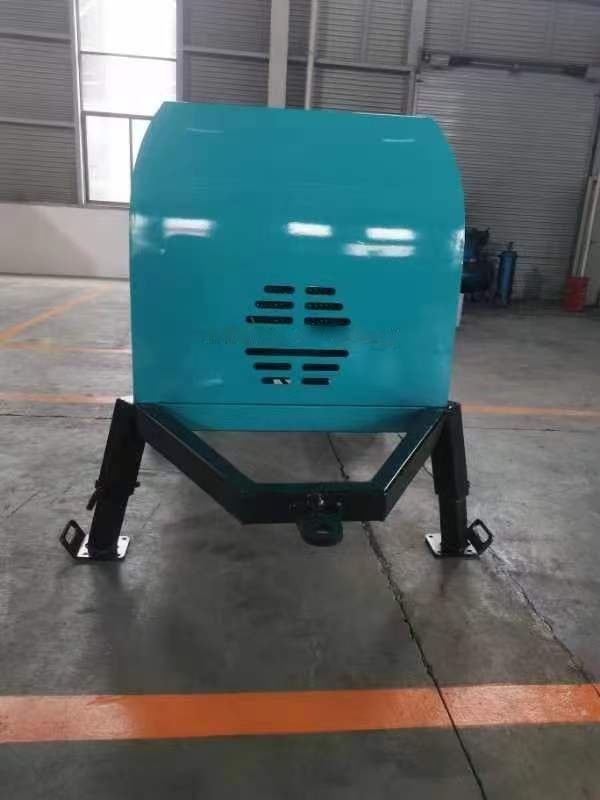

Portable Diesel Engine Concrete Concrete Pump Machine Trailer Mounted

Name: Portable Diesel Engine Concrete Concrete Pump Machine Trailer Mounted
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT30
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                portable cement concrete pump, Trailer Mounted concrete pump machine, Diesel concrete portable pump


Application:	Concrete Pump,Trailer Pump	Warranty:	3 Years
Model:	HBT30

Application:	Concrete Pump,Trailer Pump
Warranty:	3 Years
Model:	HBT30

Portable Diesel Engine Concrete Concrete Pump Machine Trailer Mounted

Portable Diesel Engine Concrete Pump Machine - Trailer Mounted

Product Specifications

Attribute	Value
Application	Concrete Pump, Trailer Pump
Warranty	3 years
Model	HBT30

Product Overview

The HBT series concrete pumps represent advanced concrete machinery developed using modern technology. These high-tech machines incorporate international standards and design experience to replace traditional manual concrete lifting methods. Available with diesel engine or electric motor drive options, they feature S valve or gate valve pumps with excellent technical performance, high-standard configuration, and superior reliability.

Technical Parameters

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
High/Low Switch	/	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve	Rotary Valve
Rater Power	kw	35	45	55	90	90
Distribution Valve Type	/	S Valve	S Valve	S Valve	S Valve	S Valve
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800
Hopper Capacity*Feeding Height	L*mm	350*1000	350*1100	600*1400	600*1400	600*1400
Max.Aggregate Size	mm	Pebble:20; Crushed Stone:20	Pebble:20; Crushed Stone:20	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40	Pebble:50; Crushed Stone:40
Total Weight	kg	2300	2500	4500	6000	6100
Dimension(LWH)	mm	380015001600	450015001650	510017002000	640021002200	640021002200

Key Features

Spacious hopper capacity for efficient concrete handling
Available in electric or diesel engine power options
S valve distribution system for reliable performance
Open hydraulic system design for easy maintenance
Rotary valve high/low switch for operational flexibility
Robust construction with durable components
