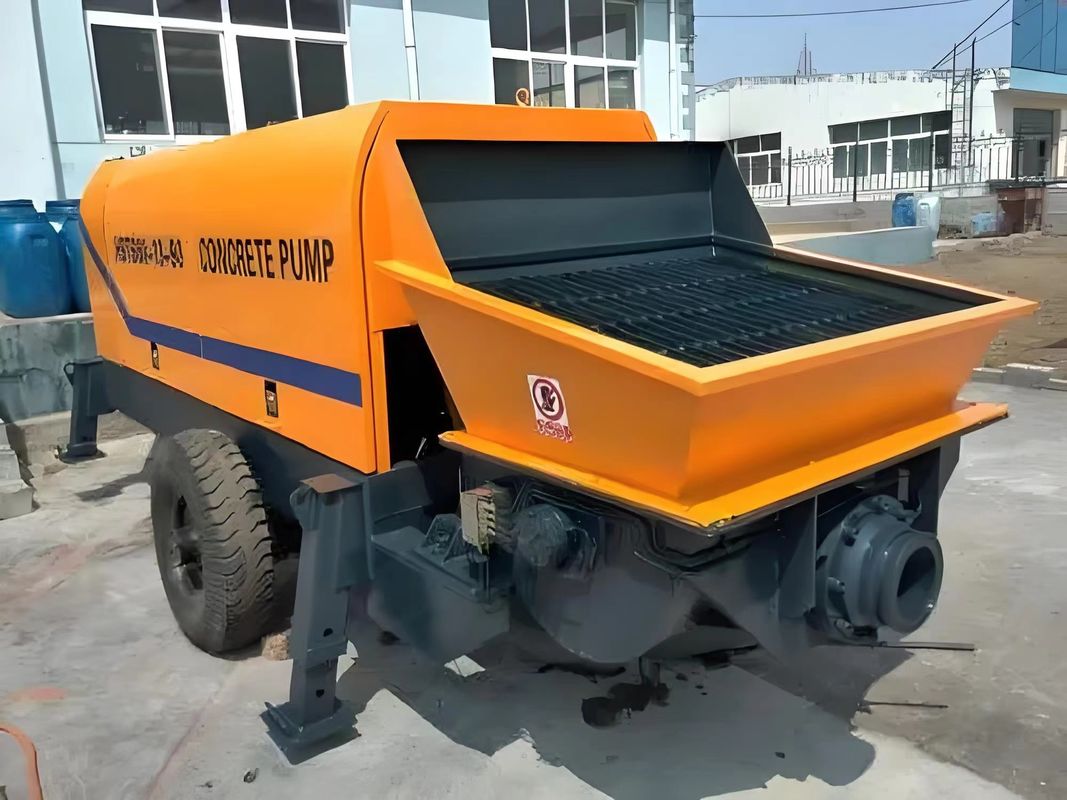

20 Meter Streamlined Stationary Concrete Pump Mixer Machine 2300kg

Name: 20 Meter Streamlined Stationary Concrete Pump Mixer Machine 2300kg
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HBT60
Price: 6,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HBT60

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD5000-7000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 500 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                streamlined Stationary Concrete Pump, 2300kg Stationary Concrete Pump, streamlined stationary pump


Application:	Concrete Pump,Trailer Pump	Warranty:	3 Years
Model:	HBT60	Pump Output:	20 M³/h
Main Oil Pump:	Rexroth	Hopper Capacity:	0.6m3
Total Weight:	6150	Feature:	Easy Operation
Max. Aggregate Size:	40mm	Power:	118kw
Pumping System Type:	Hydraulic	Color:	Customized
Legs:	Hydraulic Cylinder Legs	Pipe Diameter:	100 Or 125mm
Power Type:	Diesel	Concrete Cylinder Diameter:	230mm
Electric Motor Power:	90kW	Wheel Number:	4

Application:	Concrete Pump,Trailer Pump
Warranty:	3 Years
Model:	HBT60
Pump Output:	20 M³/h
Main Oil Pump:	Rexroth
Hopper Capacity:	0.6m3
Total Weight:	6150
Feature:	Easy Operation
Max. Aggregate Size:	40mm
Power:	118kw
Pumping System Type:	Hydraulic
Color:	Customized
Legs:	Hydraulic Cylinder Legs
Pipe Diameter:	100 Or 125mm
Power Type:	Diesel
Concrete Cylinder Diameter:	230mm
Electric Motor Power:	90kW
Wheel Number:	4

20 Meter Streamlined Stationary Concrete Pump Mixer Machine 2300kg

Product Overview

The HBT series concrete pumps represent advanced concrete machinery developed with modern technology. These high-tech machines incorporate international standards and design experience to replace traditional labor-intensive concrete lifting methods. Available with diesel engine or electric motor drive options, featuring S valve or gate valve pumps with excellent technical performance, high-standard configuration, and superior reliability.

Key Specifications

Model

HBT60

Pump Output

20 m³/h

Power

118kw

Max. Aggregate Size

40mm

Hopper Capacity

0.6m³

Total Weight

6150kg

Warranty

3 years

Pipe Diameter

100 or 125mm

Technical Specifications

Parameters	Unit	HBT30.6.35S	HBT40.8.45S	HBT50.10.55S	HBT60.13.90S	HBT80.16.110S
Type of Power Machine	/	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine	Electric/Diesel engine
Pumping Volume(Max)	m³/h	30	35	52	66	75
Outlet Pressure	Mpa	6	8	10	13	13
Hydraulic System Type	/	Open	Open	Open	Open	Open
Rater Power	kw	35	45	55	90	90
Concrete Cylinder Diameter*Stroke	mm	Φ125*600	Φ140*1000	Φ200*1000	Φ200*1650	Φ200*1800

Key Features

Advanced hydraulic pumping system with Rexroth main oil pump
Stable hydraulic cylinder legs for secure operation
Customizable color options to match your fleet
Efficient diesel power option with 118kw output
Large hopper capacity (0.6m³) for continuous operation
Handles aggregate sizes up to 40mm (crushed stone)
Compact dimensions for easy transportation and setup

Applications

Ideal for various concrete pumping applications including construction sites, infrastructure projects, and commercial building projects. Suitable for both trailer pump and stationary concrete pump configurations.
