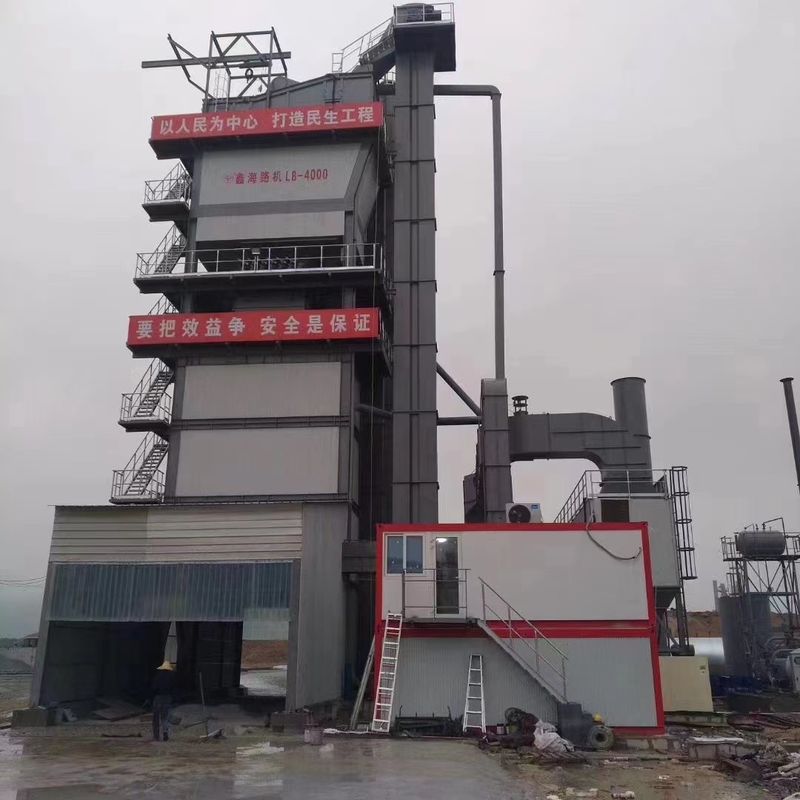

Stationary Asphalt Batching Bituminous Hot Mix Plant Machine For Road Construction

Name: Stationary Asphalt Batching Bituminous Hot Mix Plant Machine For Road Construction
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: LB1000
Price: 150.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: LB1000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD250,000-50,0000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Stationary bituminous hot mix plant, road construction bituminous hot mix plant, Stationary asphalt batching plant


Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Type:	Asphalt Mixing Plant	Application:	High-grade Asphalt Road Paving,Construction Areas,Road Construction Asphalt Plant
Control System:	PLC+colorized Touching Screen

Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Type:	Asphalt Mixing Plant
Application:	High-grade Asphalt Road Paving,Construction Areas,Road Construction Asphalt Plant
Control System:	PLC+colorized Touching Screen

Stationary Asphalt Batching Bituminous Hot Mix Plant Machine For Road Construction

Product Specifications

Attribute	Value
Warranty	1 Year
After-sales service	Engineers available to service machinery overseas
Type	Asphalt mixing plant
Application	High-grade Asphalt Road Paving, Construction Areas, Road Construction Asphalt Plant
Control system	PLC + colorized Touching Screen

Product Description

The 80tph asphalt mixer plant is a compact and versatile asphalt mixing plant designed for medium-scale asphalt production. It offers a range of features and capabilities that make it suitable for various road construction projects.

Production Capacity: 80 tons per hour, ideal for medium-sized projects including rural road construction, parking lots, and small-scale infrastructure development.
Mixing System: Features twin-shaft paddle mixer or drum mixer for thorough blending of aggregates, filler, and bitumen, ensuring high-quality asphalt mixture with excellent consistency.
Precise Measurement: Equipped with accurate weighing systems for precise dosing of materials and control system for adjustable mixing ratios and temperature settings.

Technical Specifications

Model	Rated Output	Mixer Capacity	Dust removal effect	Total power	Fuel consumption	Fire coal	Weighing accuracy	Hopper Capacity	Dryer Size
LB1000	80t/h	1000kg	≤20 mg/Nm³	264kw	5.5-7 kg/t	10kg/t	aggregate;±5‰ powder;±2.5‰ asphalt;±2.5‰	4×8.5m³	φ1.75m×7m
LB1300	100t/h	1300kg	264kw	4×8.5m³	φ1.75m×7m
LB1500	120t/h	1500kg	325kw	4×8.5m³	φ1.75m×7m
LB2000	160t/h	2000kg	483kw	5×12m³	φ1.75m×7m
