ODM Hot Bituminous Asphalt Mixing Plant Machinery For Road Construction

Name: ODM Hot Bituminous Asphalt Mixing Plant Machinery For Road Construction
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: LB2000
Price: 150.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: LB2000

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD250,000-50,0000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                bituminous Asphalt Mixing Plant, road construction Asphalt Mixing Plant, ODM hot mix asphalt plant


Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Type:	Asphalt Mixing Plant	Application:	High-grade Asphalt Road Paving,Construction Areas,Road Construction Asphalt Plant
Control System:	PLC+colorized Touching Screen

Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Type:	Asphalt Mixing Plant
Application:	High-grade Asphalt Road Paving,Construction Areas,Road Construction Asphalt Plant
Control System:	PLC+colorized Touching Screen

ODM Hot Bituminous Asphalt Mixing Plant Machinery For Road Construction

Product Overview

The 160Tons Asphalt Mixer Plant Machine is designed for high-grade asphalt road paving and construction projects. Featuring advanced technology and robust construction, this plant delivers precise, efficient asphalt production with environmental considerations.

Key Specifications

Warranty	1 Year
After-sales Service	Engineers available to service machinery overseas
Type	Asphalt mixing plant
Application	High-grade Asphalt Road Paving, Construction Areas, Road Construction Asphalt Plant
Control System	PLC + Colorized Touching Screen

Advanced Features

Twin-shaft paddle mixer ensures thorough blending of materials for uniform, high-quality asphalt
Precision weighing system for accurate dosing of aggregates, filler, and bitumen
Advanced dust collection systems maintain environmental compliance and worker safety
Modular design with integrity steel base for easier transportation and installation
Superior drying drum plate design with efficient combustion heating technology
High-capacity hot aggregate bin increases production capacity

Technical Specifications

Model	Rated Output	Mixer Capacity	Dust Removal	Total Power	Fuel Consumption	Fire Coal	Weighing Accuracy	Hopper Capacity	Dryer Size
LB1000	80t/h	1000kg	≤20 mg/Nm³	264kw	5.5-7 kg/t	10kg/t	Aggregate:±5‰ Powder:±2.5‰ Asphalt:±2.5‰	4×8.5m³	φ1.75m×7m
LB1300	100t/h	1300kg	264kw	4×8.5m³	φ1.75m×7m
LB1500	120t/h	1500kg	325kw	4×8.5m³	φ1.75m×7m
LB2000	160t/h	2000kg	483kw	5×12m³	φ1.75m×7m

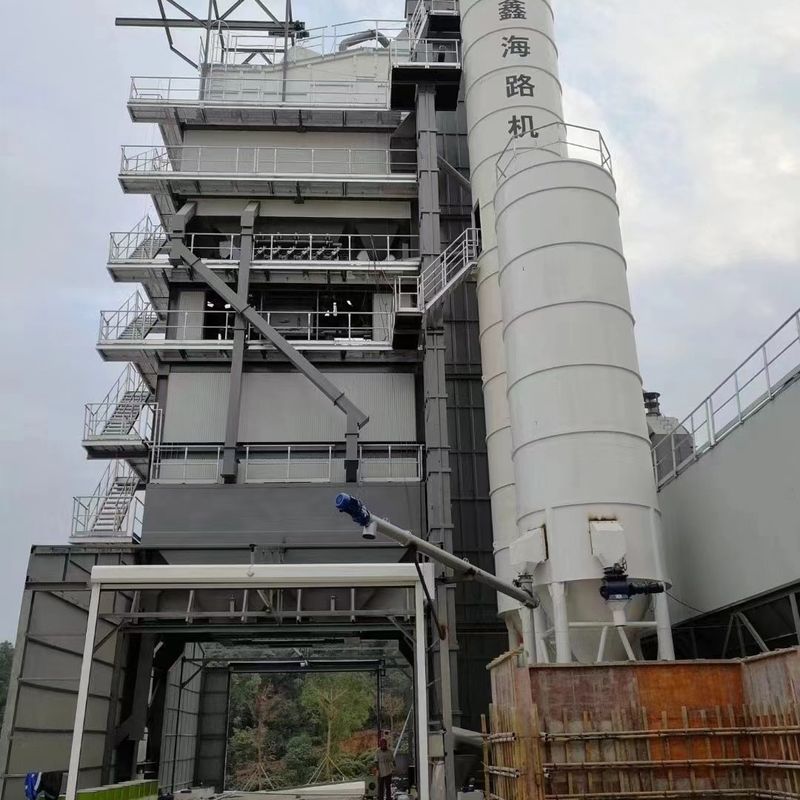

Product Images
