32M Spider Concrete Placement Boom For Construction Engineering

Name: 32M Spider Concrete Placement Boom For Construction Engineering
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HG32
Price: 8,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HG32

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD6000-10000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                32M Concrete Placement Boom, spider Concrete Placement Boom, 32M placing boom concrete


Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application:	Construction Engineering
Keyword:	Concrete Pump

Condition:	New
Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Application:	Construction Engineering
Keyword:	Concrete Pump

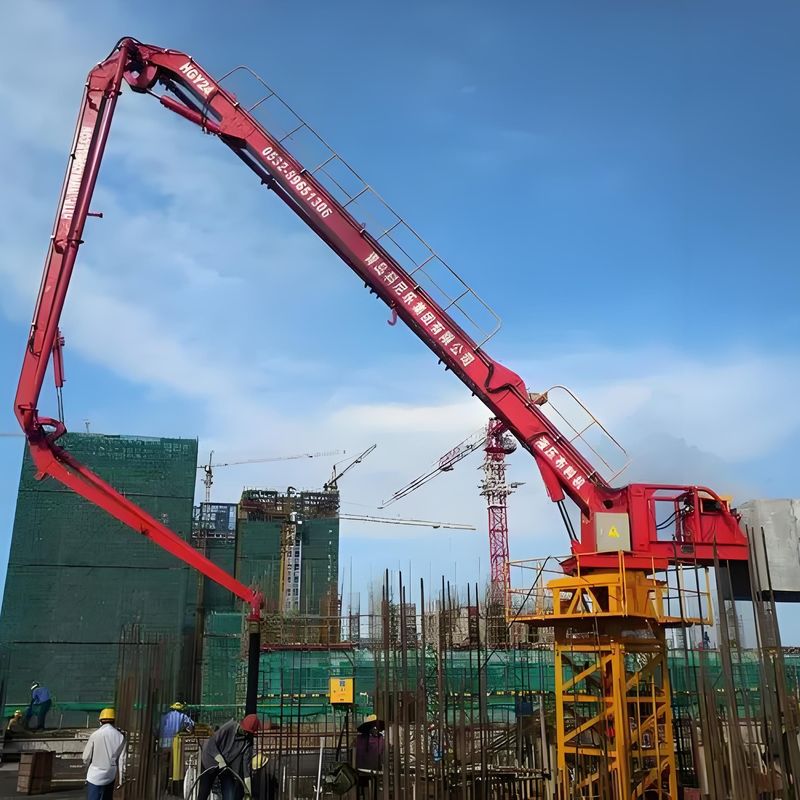

32M Spider Concrete Placement Boom For Construction Engineering

Product Specifications

Attribute	Value
Condition	New
Warranty	1 Year
After-sales service	Engineers available to service machinery overseas
Application	Construction Engineering
Keyword	Concrete pump

Product Overview

The 32M concrete placing boom is an advanced concrete pouring machine designed for efficient and precise concrete placement in construction projects. This innovative equipment revolutionizes concrete placement with superior efficiency, accuracy, and versatility compared to traditional methods.

The concrete placing pump consists of a pump unit, delivery pipeline, and control system. The hydraulic pump propels concrete through the pipeline while the control system allows operators to precisely regulate pumping parameters for optimal placement.

Technical Specifications

Item	HG28	HG32
Max. Placing Radius (M)	27.5	32
Big Arm Length (M)	12.6	14.5
Big Arm Elevation (°)	0-65	0-65
Medium Arm Length (M)	8.8	9.2
Medium Arm Elevation (°)	0-180	0-180
Small Arm Length (M)	6.1	8
Small Arm Elevation (°)	0-180	0-180
Hose Length (M)	3	3
Concrete Delivery Pipe (Mm)	Ø125×6	Ø125×6
Tail Rotary Radius (M)	3.9	-
Total Power (Kw)	5.5	15
System Pressure (Mpa)	24	24
Rotary Speed (R/Min)	0.3-0.8	0.3-0.8
Rotary Range (°)	0-360	0-360
Lifting Speed (M/Min)	0.65	0.65
Lifting Height(M/Time)	≤3.6	≤3.6
Overall Height (M)	12.6	22.9
Bare Machine Weight (Kg)	10720	16700
Balance Weight(Kg)	4×2000	-
Control Mode	Panel/Wireless Remote Control
