Stationary Spider Concrete Placement Boom Mobile Machinery Rotary Reducer

Name: Stationary Spider Concrete Placement Boom Mobile Machinery Rotary Reducer
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HG32
Price: 8,000.00 USD
Availability: InStock

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: HG32

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD6000-10000 PER SET

Delivery Time: 20-35DAYS

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 50 SET PER MONTH

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                Stationary Concrete Placement Boom, Rotary Concrete Placement Boom, Mobile spider boom placer


Condition:	New	Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application:	Construction Engineering
Keyword:	Concrete Pump

Condition:	New
Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Application:	Construction Engineering
Keyword:	Concrete Pump

Stationary Spider Concrete Placement Boom Mobile Machinery Rotary Reducer

Product Specifications

Condition	New
Warranty	1 Year
After-sales Service	Engineers available to service machinery overseas
Application	Construction Engineering
Keywords	Concrete Pump

Product Features

Compatible with conventional tower sections for higher usability
High-strength steel structure with components from reputable suppliers
Optimized design, engineering, and manufacturing to latest technical standards
RZ form placing boom offers flexibility with wide placing range and no dead areas
High-level electro-hydraulic elements ensure stable operation

Key Benefits

Increased Efficiency: Delivers large volumes of concrete quickly, reducing labor requirements and project timelines
Precise Placement: Allows accurate positioning of concrete even in challenging areas, minimizing waste
Versatility: Handles various concrete mixes including low slump, high slump, and lightweight concrete
Wide Application: Suitable for foundations, slabs, walls, columns, and high-rise structures

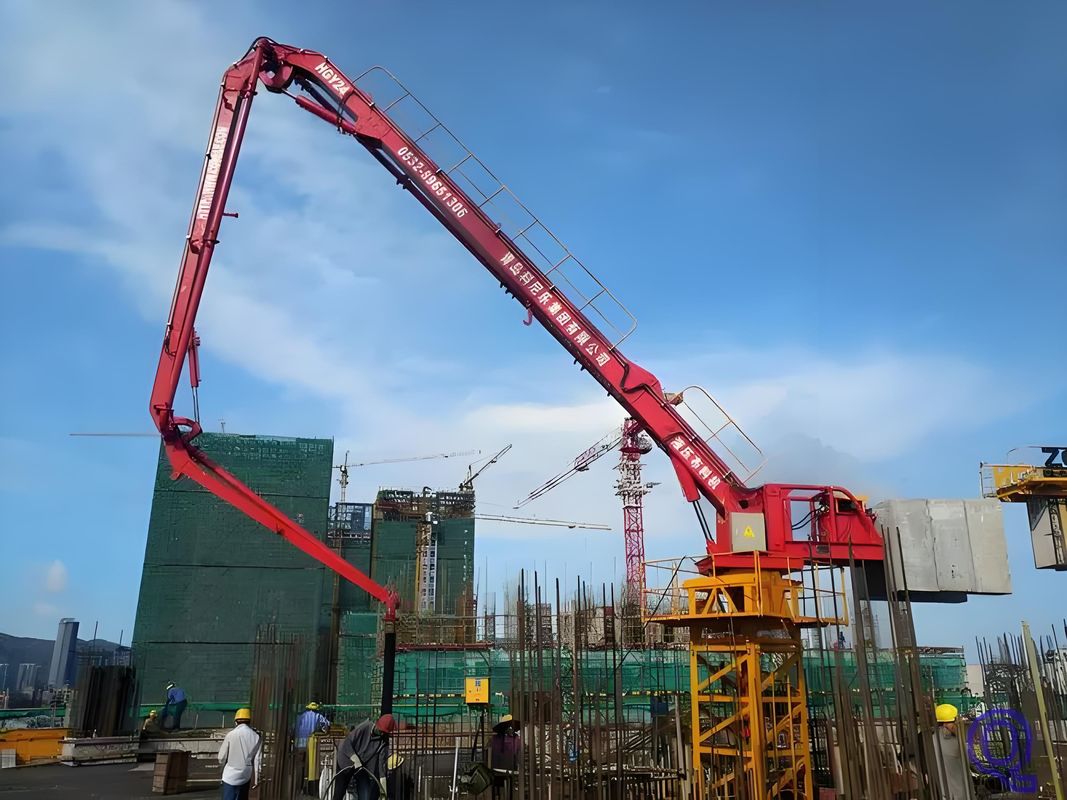

Product Images

Technical Specifications

Item	HG28	HG32
Max. Placing Radius (M)	27.5	32
Big Arm Length (M)	12.6	14.5
Big Arm Elevation (°)	0-65	0-65
Medium Arm Length (M)	8.8	9.2
Medium Arm Elevation (°)	0-180	0-180
Small Arm Length (M)	6.1	8
Small Arm Elevation (°)	0-180	0-180
Hose Length (M)	3	3
Concrete Delivery Pipe (Mm)	Ø125×6	Ø125×6
Tail Rotary Radius (M)	3.9	-
Total Power (Kw)	5.5	15
System Pressure (Mpa)	24	24
Rotary Speed (R/Min)	0.3-0.8	0.3-0.8
Rotary Range (°)	0-360	0-360
Lifting Speed (M/Min)	0.65	0.65
Lifting Height(M/Time)	≤3.6	≤3.6
Overall Height (M)	12.6	22.9
Bare Machine Weight (Kg)	10720	16700
Balance Weight(Kg)	4×2000	-
Control Mode	Panel/Wireless Remote Control
