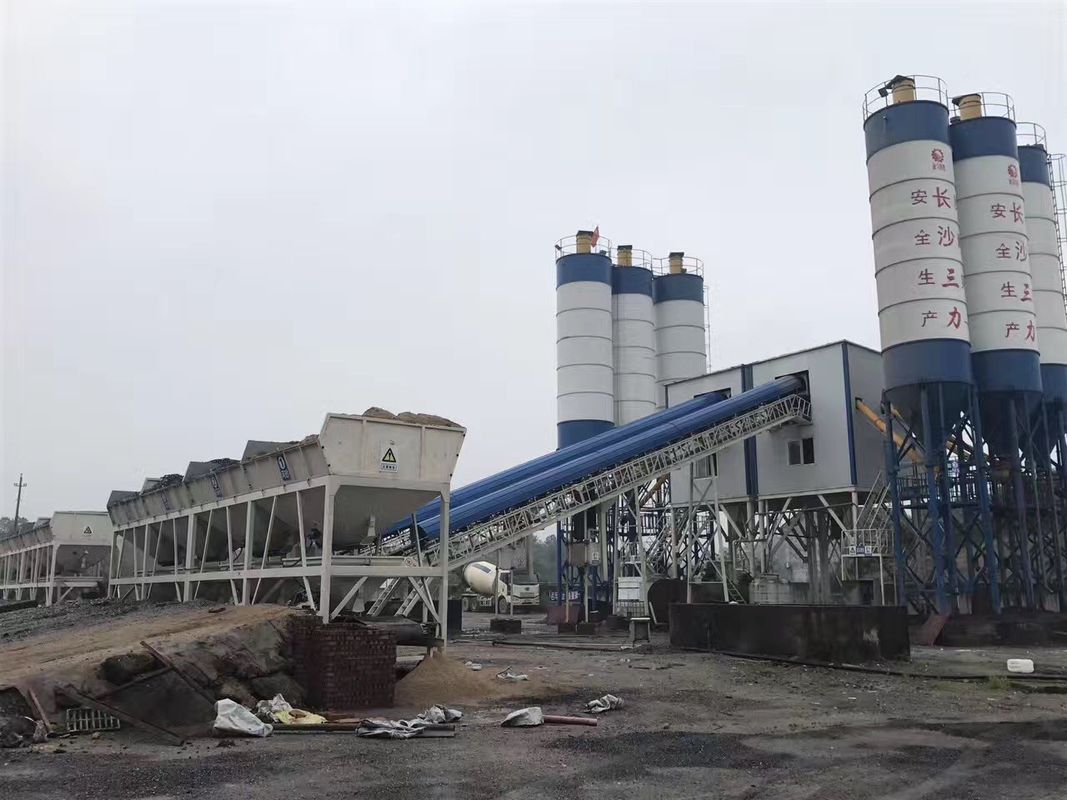

Hzs60 Stationary Wet Mix Concrete Mixing Batching Plant

The HZS60 Concrete Batching Plant is a medium-sized, high-performance concrete mixing plant designed for efficient and consistent production of high-quality concrete. It is widely used in construction projects such as roads, bridges, buildings, and prefabricated components.

• Rated Productivity: 60 m³/h (cubic meters per hour)
• Mixer Model: JS1000 twin-shaft concrete mixer
• Mixing Cycle Time: Approximately 60 seconds
• Aggregate Batching Machine: PLD1600 with 3 or 4 bins
• Control System: Full-automatic control with manual override, typically using PLC and industrial computer systems
• Weighing System: Independent weighing for cement, water, additives, and aggregates for high accuracy
• Conveying System: Belt conveyor for aggregate feeding; screw conveyor for cement delivery
• Discharge Height: 3.8-4.2 meters, suitable for direct loading into concrete mixer trucks

• Combined structure and unitized module design for quick installation and demolition
• Increased unloading angle of aggregate bin prevents rain-related unloading difficulties
• Cylinder discharge or electric push rod for convenient material discharge
• High-quality steel construction for superior structural strength and stability
• Twin-shaft forced mixing main machine ensures strong performance and uniform mixing
• Premium pneumatic and electrical components guarantee reliability and accurate metering
• Comprehensive maintenance access with walking platforms and check ladders
• Environmentally friendly design with pulse dust removal system and wastewater recycling
