Home > products > Mobile Batching Plant > ODM Dry Concrete Mobile Batching Plant Portable Mini Twin Shaft

ODM Dry Concrete Mobile Batching Plant Portable Mini Twin Shaft

Product Details

Place of Origin: Hunan

Brand Name: Sunny

Model Number: YHZ90

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD40000-60000 PER SET

Packaging Details: FULL CONTAINER

Delivery Time: 20-35DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 SET PER MONTH

Get Best Price
Highlight:

ODM Mobile Batching Plant

,

Twin Shaft Mobile Batching Plant

,

Twin Shaft batching plant portable

Warranty:
12 Months
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Field Installation,commissioning And Training,Field Maintenance And Repair Service
Power Type:
Electric
Color:
Customer Required
Capacity:
90 M3/h
Type:
Twin Horizontal Shaft
Productivity:
60m3/hr
Application:
Building Works,Construction Projects
Control System:
Automatic PLC Control,Siemens
Mixer:
Twin Shaft Mixer JS1000
Warranty:
12 Months
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Online Support,Field Installation,commissioning And Training,Field Maintenance And Repair Service
Power Type:
Electric
Color:
Customer Required
Capacity:
90 M3/h
Type:
Twin Horizontal Shaft
Productivity:
60m3/hr
Application:
Building Works,Construction Projects
Control System:
Automatic PLC Control,Siemens
Mixer:
Twin Shaft Mixer JS1000

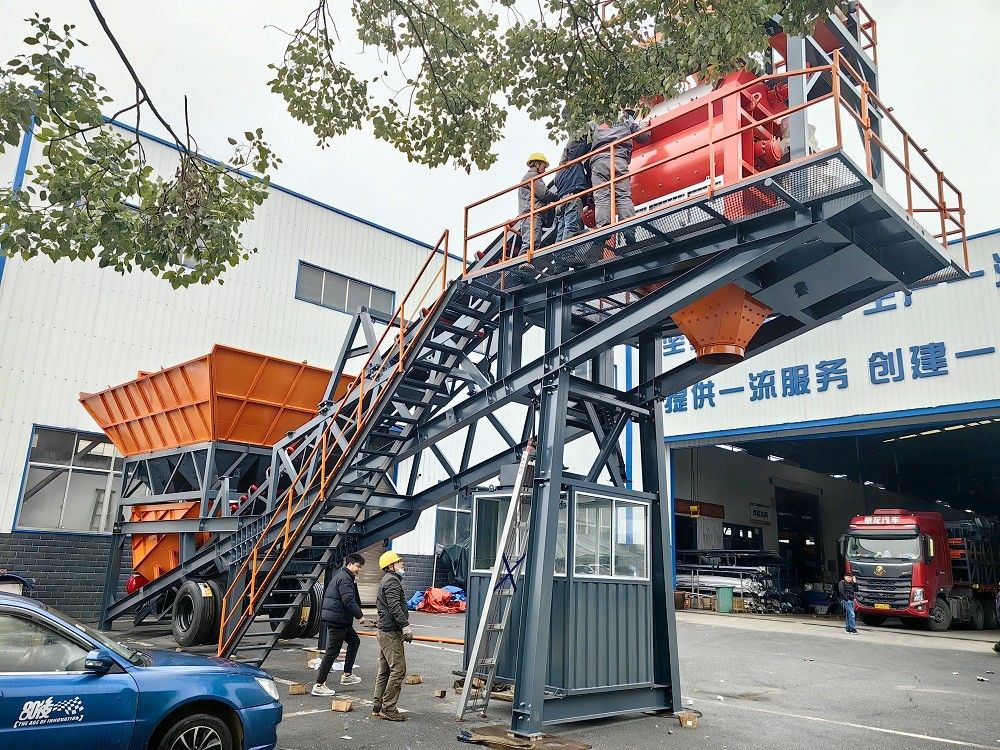

ODM Dry Concrete Mobile Batching Plant Portable Mini Twin Shaft

Mobile construction YHZ90 mini Mobile concrete batching plant for sale

Mobile concrete batching plant

The YHZS90 concrete mixing plant offers numerous advantages, including on-site concrete production, reduced reliance on ready-mixed concrete suppliers, and immediate availability of fresh concrete. It promotes efficient construction operations, cost savings, and greater control over the concrete production process.

It's important to note that specific features, capacities, and configurations of the YHZS90 concrete mixing plant may vary depending on the manufacturer and model. Therefore, it is recommended to refer to product catalogs or consult with manufacturers for detailed information on a specific YHZS60 concrete mixing plant.


Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete.

As a manufacturer of concrete batching plant with over 20-year experience, we have YHZ series of mobile concrete batching plant. The capacity is from 25m3/h to 90m3/h. Welcome to contact us for details and quotations.

ODM Dry Concrete Mobile Batching Plant Portable Mini Twin Shaft 0
Model
HZS25
HZS35
HZS50
HZS60
HZS75
HZS90
HZS120
HZS150
HZS180
Discharging Capacity (L)
500
750
1000
1000
1500
1500
2000
2500
3000
Charging Capacity(L)
800
1200
1600
1600
2400
2400
3200
4000
4800
Maximum Productivity(m³/h)
25
35
50
60
75
90
120
150
180
Charging Model
Skip Hopper
Skip Hopper
Skip Hopper
belt conveyor
Skip Hopper
belt conveyor
belt conveyor
belt conveyor
belt conveyor
Standard Discharging Height(m)
1.5~3.8
2~4.2
4.2
4.2
4.2
4.2
3.8~4.5
4.5
4.5
Number of Species of Aggregate
2~3
2~3
3~4
3~4
3~4
4
4
4
4
Maximum Aggregate Size(mm)
≤60mm
≤80mm
≤80mm
≤80mm
≤80mm
≤80mm
≤120mm
≤150mm
≤180mm
Cement/Powder Silo Capacity(set)
1×100T
2×100T
3×100T
3×100T
3×100T
3×100T
4×100T or 200T
4×200T
4×200T
Mixing Cycle Time(s)
72
60
60
60
60
60
60
30
30
Total Installed Capacity(kw)
60
78.5
111
145
110
198.06
210
230
288

ODM Dry Concrete Mobile Batching Plant Portable Mini Twin Shaft 1ODM Dry Concrete Mobile Batching Plant Portable Mini Twin Shaft 2





Q1: How to choose the suitable concrete batching plant model ?
A1: Aimix professional engineers and sales manager will suggest the best choice according to your needs. Such as the mixing capacity, site planning & design, installation period, project budget, etc.

Q2: Do you provide overseas service to install and debug ?
A2: Sure friend. We have overseas after-sale service team to meet customer requires. And Aimix have branch offices in the Philippines, Malaysia, Indonesia, Uzbekistan, Pakistan, etc. As a reputable supplier we provide 24 hours On-site Service.


Q3: How about the fee for the engineer who come to work for installation and debugging ?
A3: The fees are negotiable. According to geographic location, project scale and complexity, project duration, transportation and accommodation expenses, etc.

Q4: Do you provide free spare parts for concrete batch plant ?
A4: Yes friend.We will supply the wearing parts before delivery and we have 12 months warranty. If there any question, feel free to contact.

Q5: Do you have CE certificate for your concrete batching plant / cement silo ?
A5: Yes, we have. Both are our patent products, certificated by CE & ISO.
